FEATURES
🚛 Chassis Configuration
Medium FOTON Food Truck features a 3360mm wheelbase, powered by a Quanchai 150hp engine paired with a 5-speed manual transmission, equipped with power steering, air brake, and 7.00R16 steel wire tires, and a cab with electric windows and air conditioning.
🧊 Body Structure

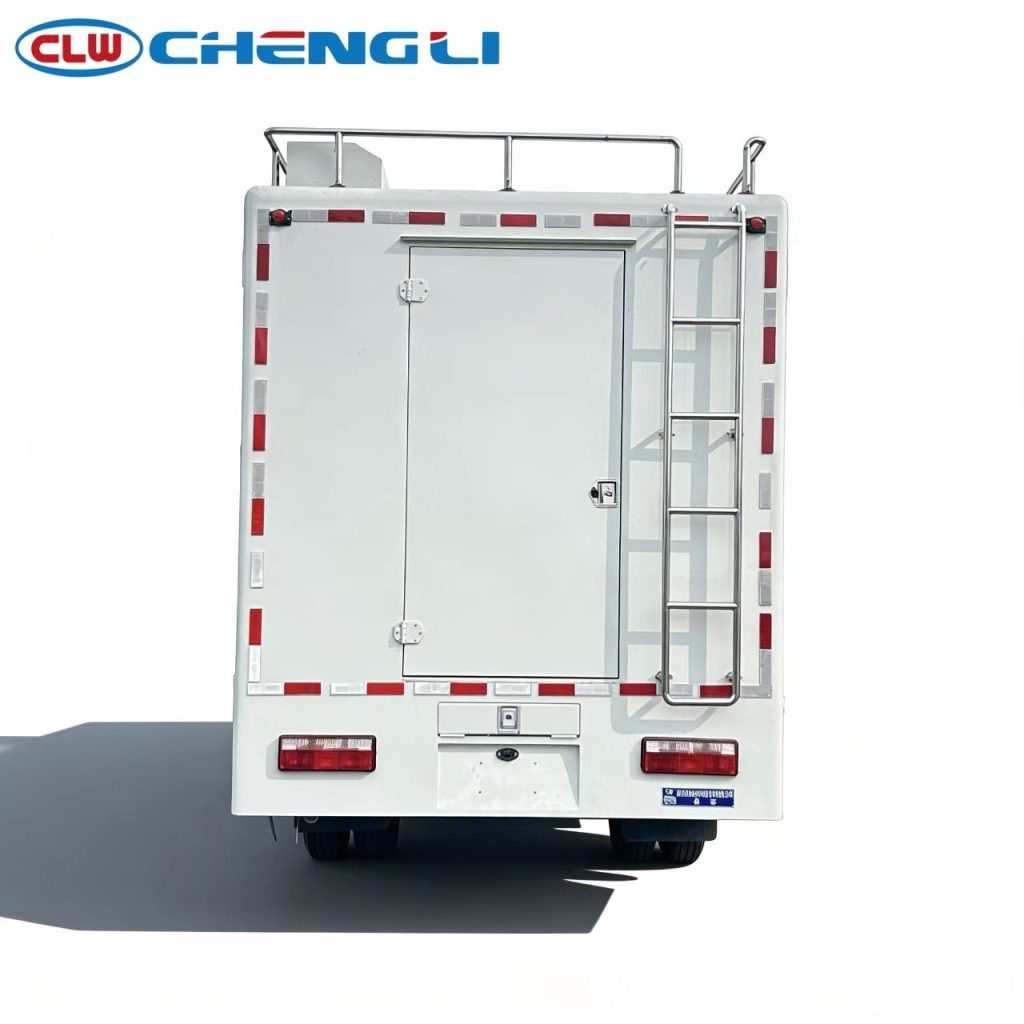

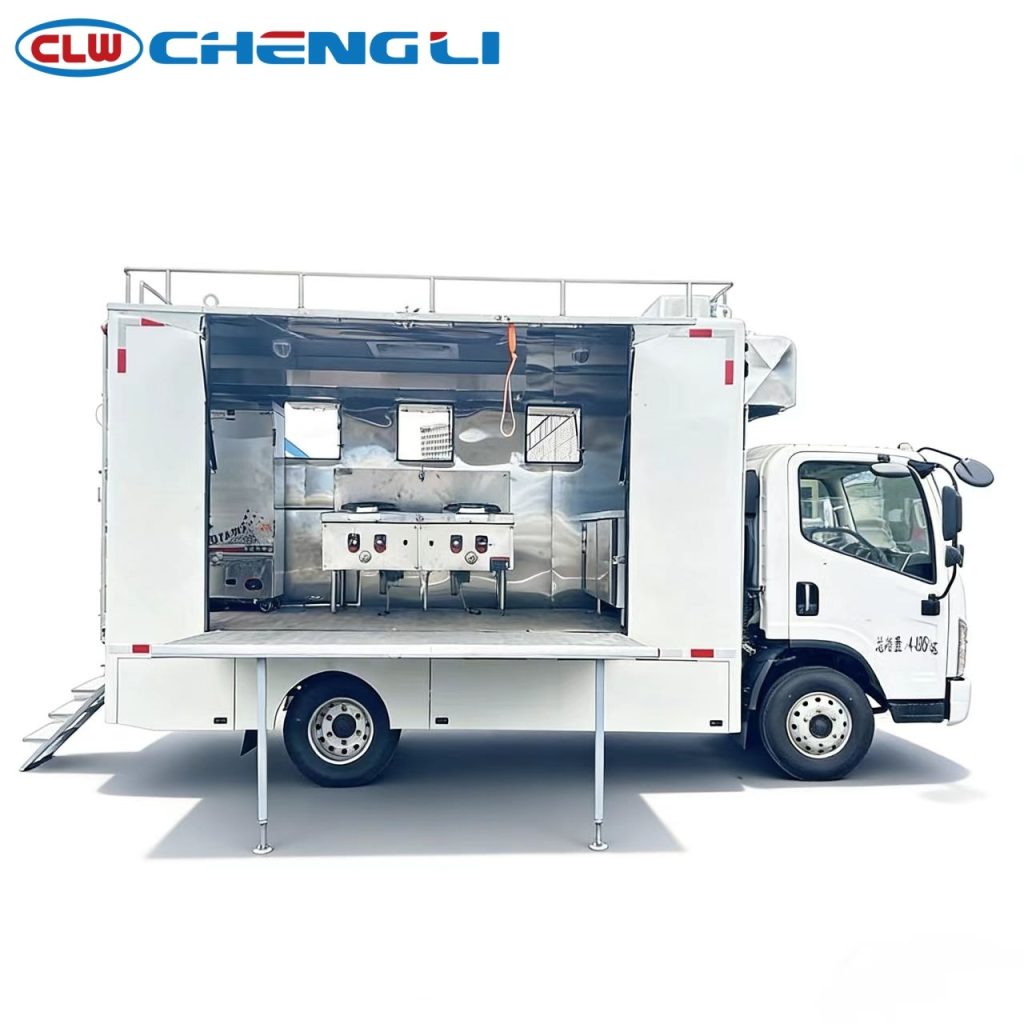

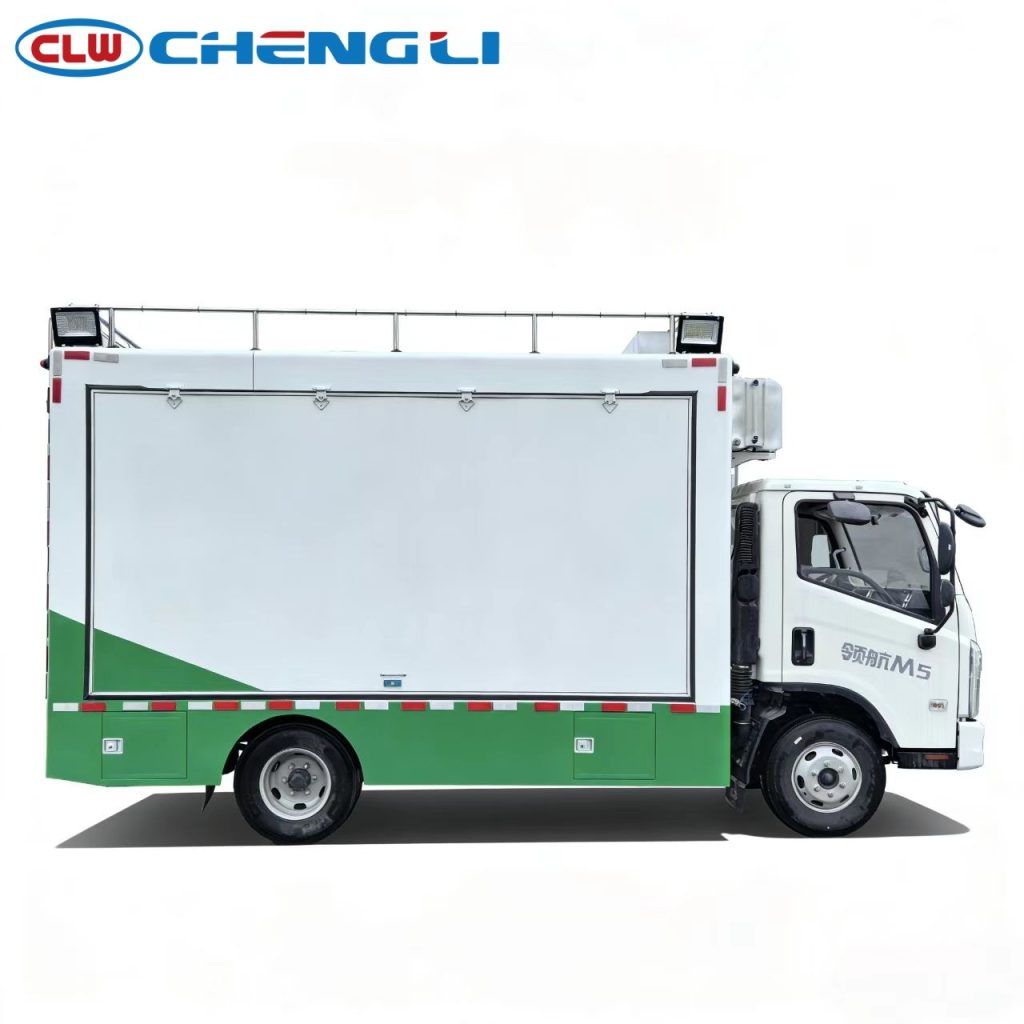

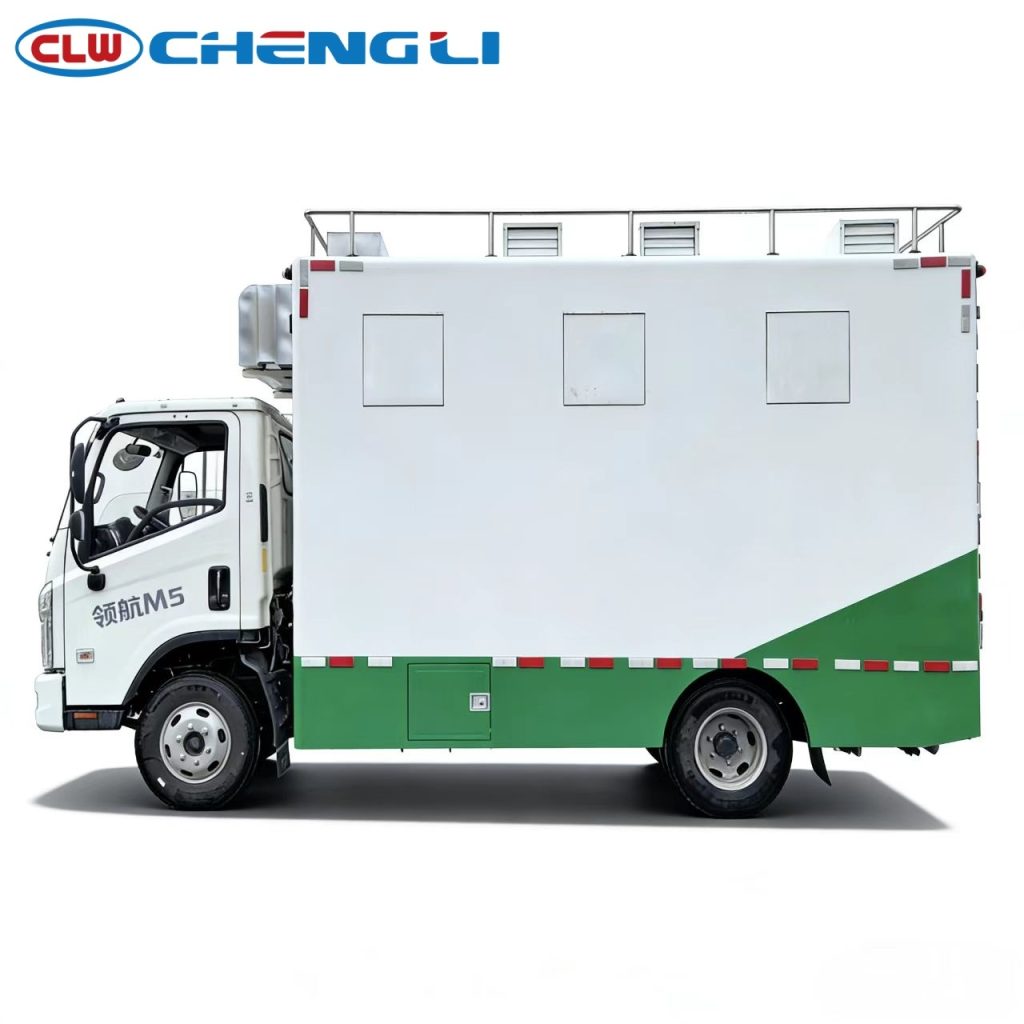

Medium FOTON Food Truck body is constructed with a steel frame + cold-rolled steel plate + stainless steel lining, filled with high-performance insulation board in the middle. One side features a closed panel with ventilation openings, while the other side has a manually operated upward-opening display panel + foldable platform. The rear is equipped with a single door, standard with a roof access ladder and pull-out ramp, and the top is surrounded by stainless steel protective railings.
🍳 Kitchen Equipment
Medium FOTON Food Truck is equipped with a dual-burner high-power stove (oil/gas dual-use) + 100L fuel tank, a 1.8-meter stainless steel platform refrigerator + double-layer shelf, a 12-compartment electric/gas dual-use food warming cabinet (serving 240-360 people), and a single-basin sink. It also integrates a 220V electrical system, explosion-proof lights, outdoor lighting, exhaust fan, skylight, 280L clean water tank + 40L wastewater tank, and a booster water pump.
SPECIFICATIONS
BASIC INFORMATION | |
Product Model | |
Overall Dimension | 5995×2260×3360 (mm) |
Curb Weight | 4300 (kg) |
GVW | 6495 (Kg) |
The above mentioned figures are approximate.
