FEATURES
Large Capacity & Efficient Transportation

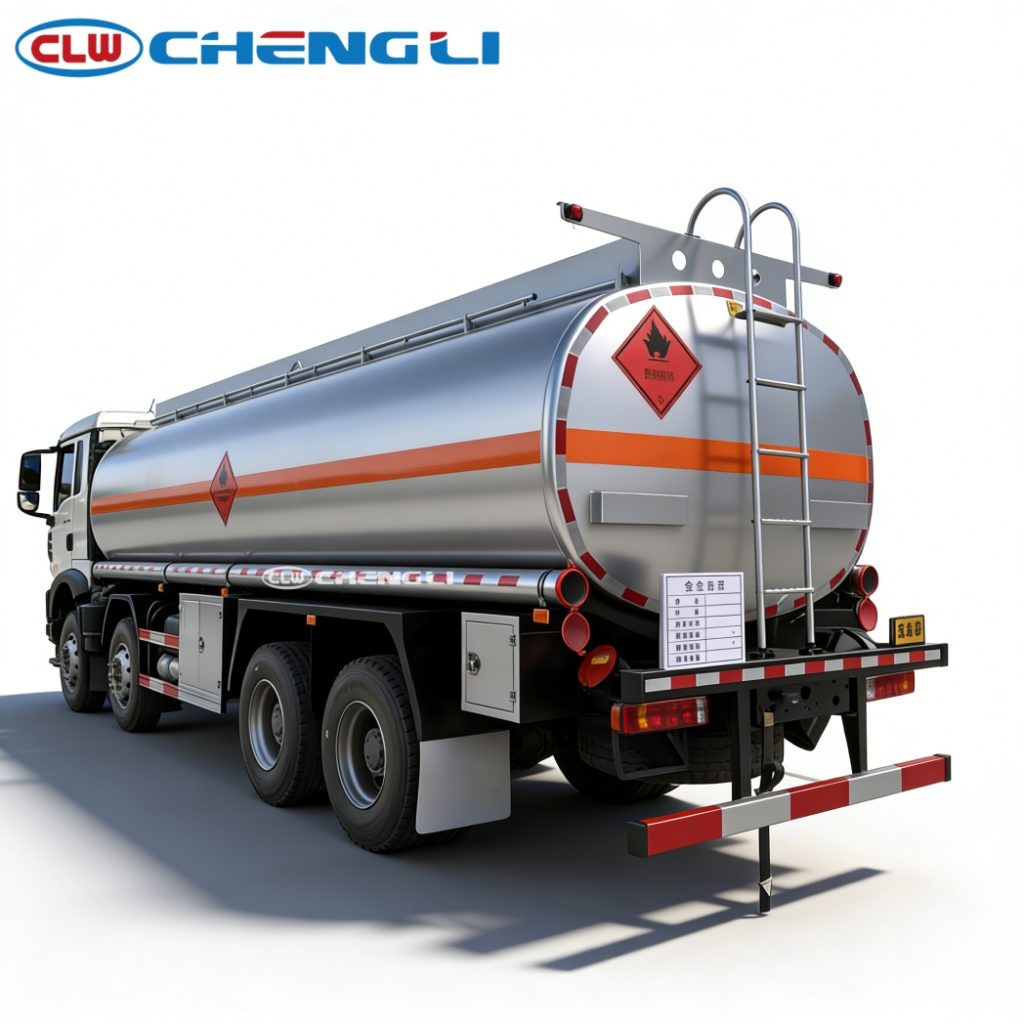

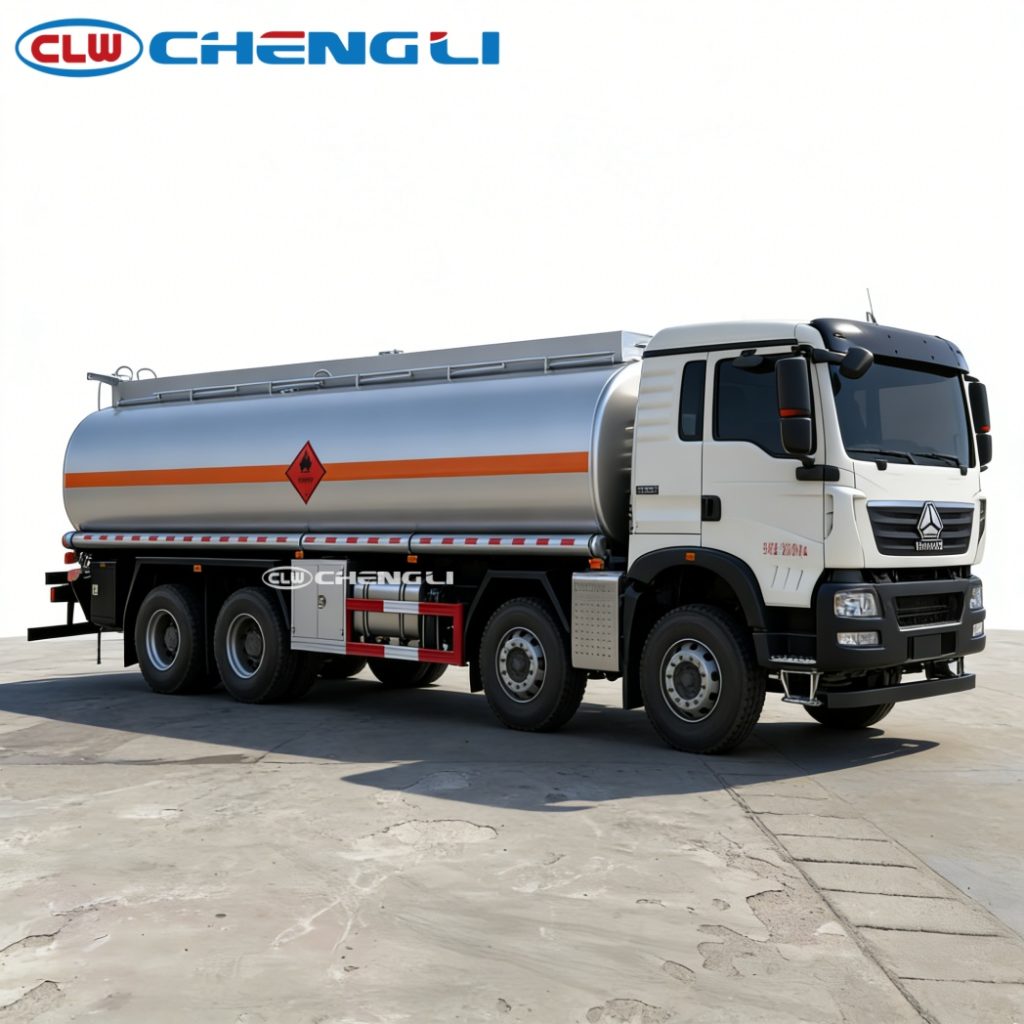

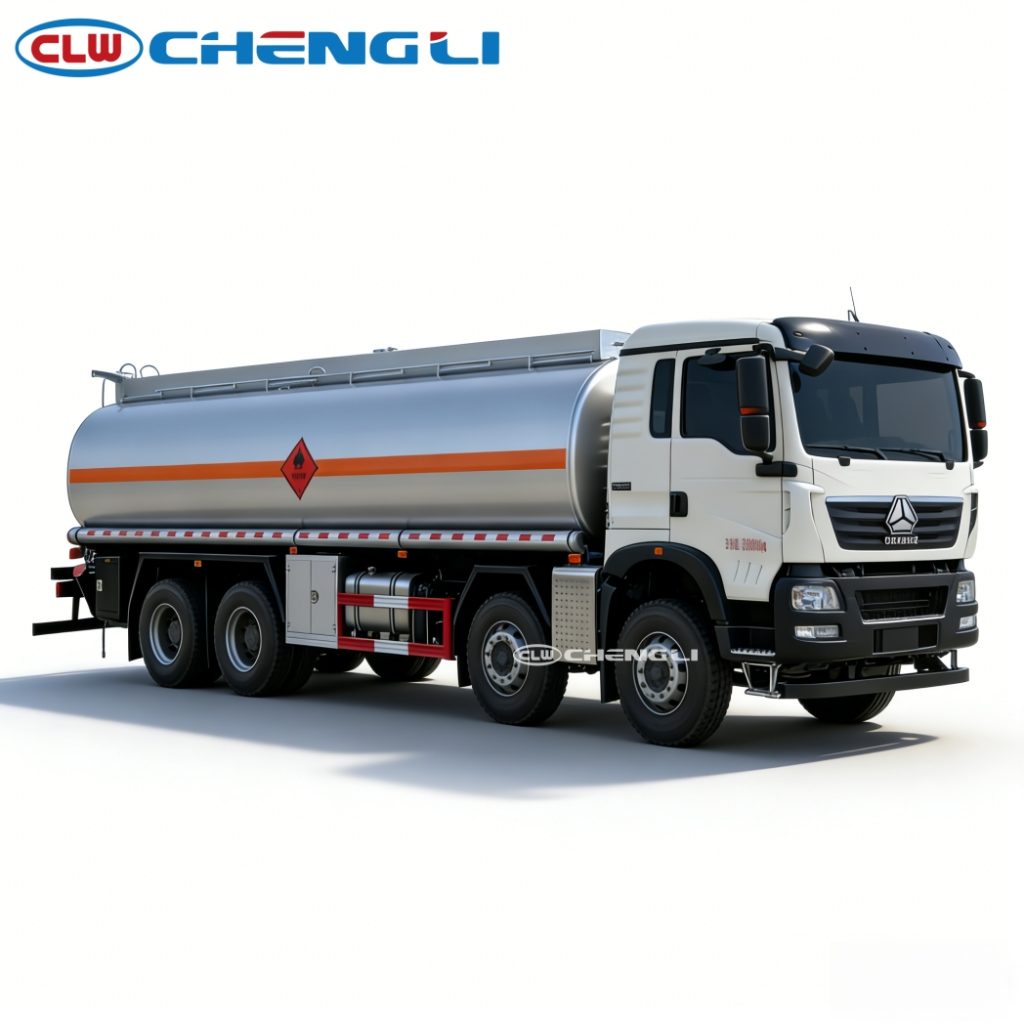

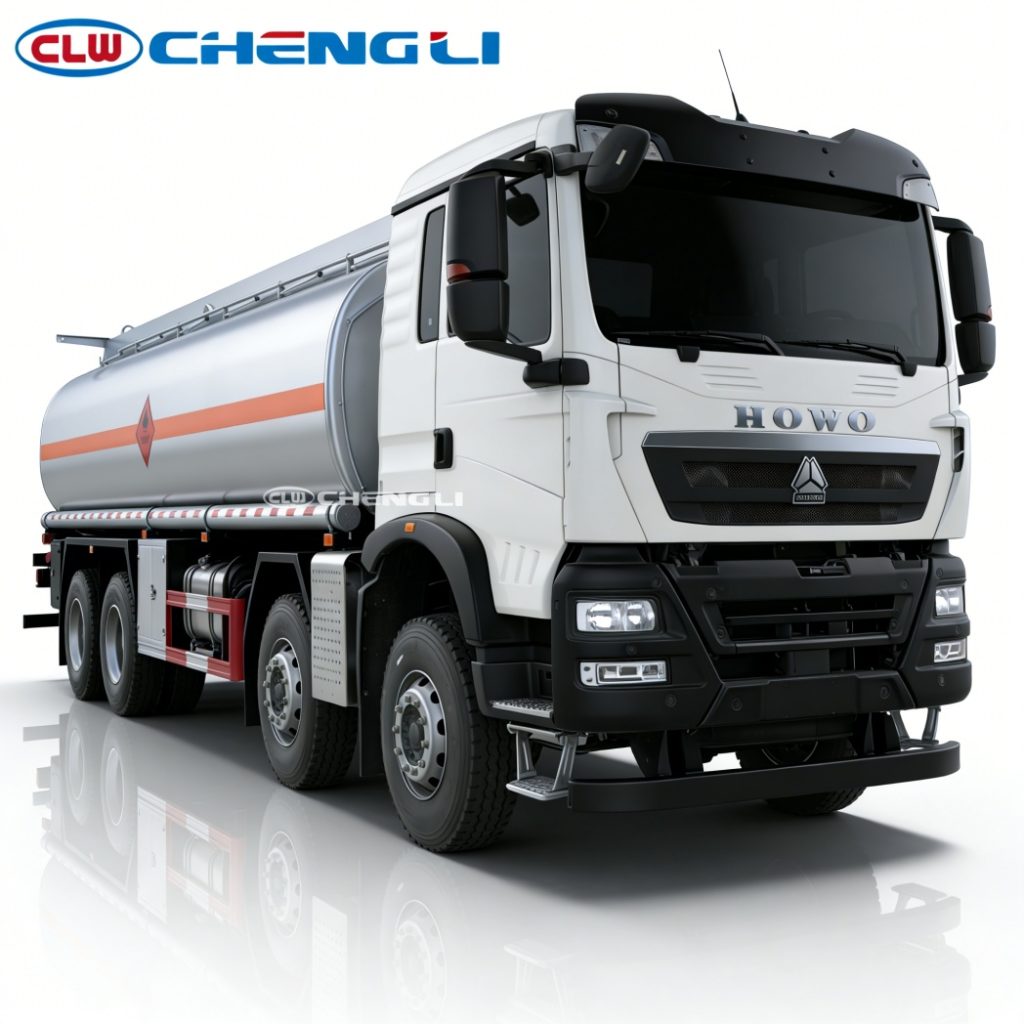

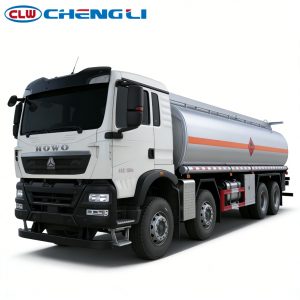

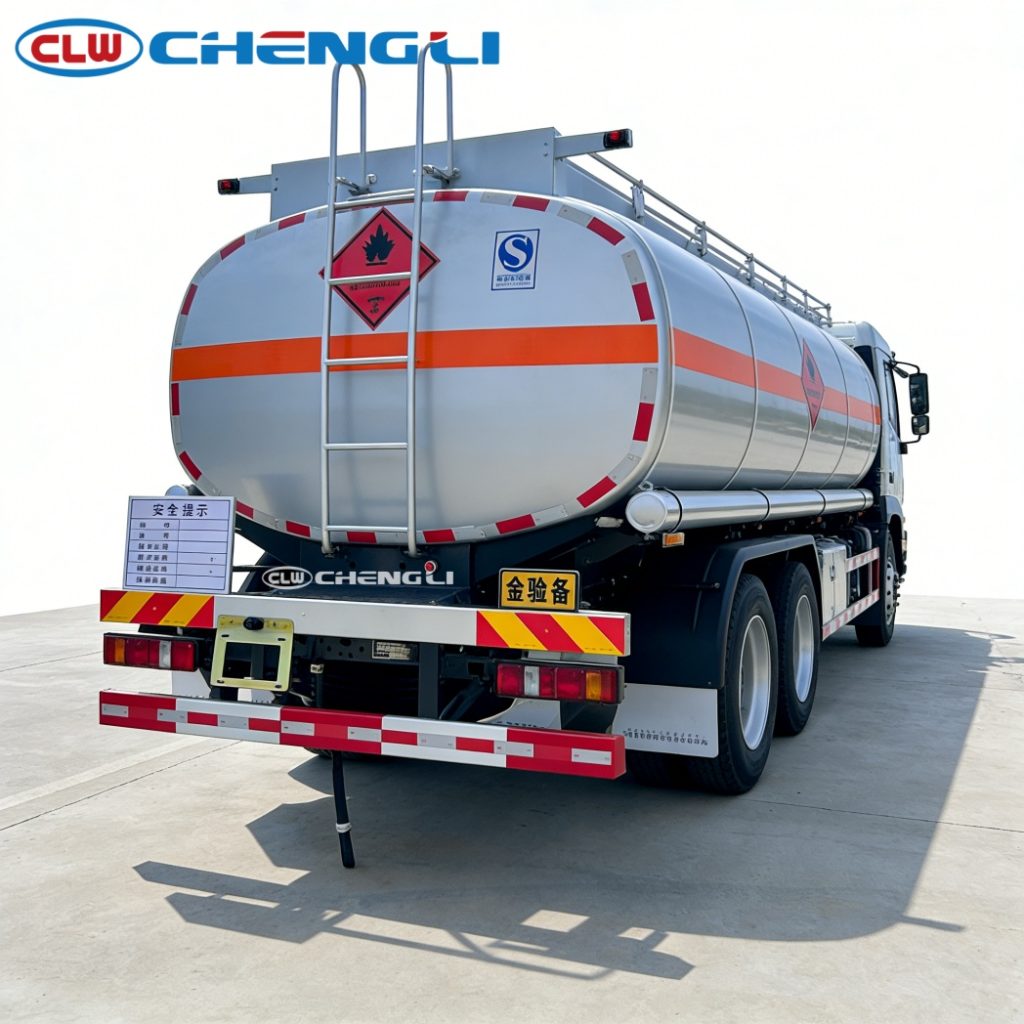

HOWO 30000L refueling tank truck comes with a substantial tank volume of 27.5 cubic meters and an effective volume of 26.1 cubic meters, designed for high-efficiency bulk fuel transportation. It boasts a rated load capacity of 18,335kg or 18,400kg, paired with a total mass of 32,000kg, enabling it to carry large quantities of diesel or gasoline in one trip.
The tank, crafted from Q235 carbon steel with a 5mm head, 4.75mm cylinder, and 4mm partition, ensures durability and safety for hazardous material transport. Equipped with an arc gear oil pump supporting both pumping in and out, along with two European standard tank caps and a subsea valve, it streamlines loading and unloading operations while balancing capacity with maneuverability for various transportation scenarios.
Powerful Performance & Reliable Chassis
Built on the robust HOWO N 8×4 truck chassis, this HOWO 30000L refueling tank truck delivers exceptional performance with a range of high-quality powertrain options. The available engines, including Sinotruk and Weichai models, offer power outputs ranging from 228kW to 341kW, ensuring strong torque and efficient fuel consumption. It features a HW19710 gearbox, MCX16ZG double rear axles with a 4.803 speed ratio, and VGD95 front axles, providing stable handling and load-bearing capacity.
The 11.00R20 18PR tires, double-layer frame, and reinforced multi-leaf springs enhance durability for long-haul operations. With a maximum speed of 80km/h and an advanced EBS 3 system from ZF, it combines performance with reliable braking and stability.
Comprehensive Safety & Practical Configuration
Safety is paramount for this FL-type dangerous goods transport vehicle, equipped with multiple safety features to meet strict standards. The HOWO 30000L refueling tank truck features front disc brakes, a tire blowout emergency protection device for the steering wheel, and air suspension on the rear axle, minimizing accident risk. The side and rear protections made of Q235 steel ensure high visibility and collision resistance. A satellite positioning tachograph enables real-time monitoring, while the exhaust pipe is front-mounted to reduce fire hazards.
SPECIFICATIONS
BASIC INFORMATION | |
Product Model | 8×4 HOWO 30000L Refueling Tank Truck |
Overall Dimension | 11860x2550x3600 mm |
Curb Weight | 13470 Kg |
GVW | 32000 Kg |
Front/Rear Overhang | 1450/2635 mm |
Cab Seating Capacity | 2-3 Persons |
CHASSIS | |
Chassis Model | HOWO ZZ1326N466GF1K |
Pay Load | 18335,18400 Kg |
Axle Configuration | 8×4 |
Wheel Base | 1800+3775+1400 mm |
Tire | 295/80R22.5 |
Engine Brand | HOWO/WEICHAI |
Max. Speed | 80 km/h |
UPPER STRUCTURE | |
Media Type | Fuel Such as Diesel/Gasoline/Engine Oil |
Color | Customized |
Tank Material | Q235 Carbon Steel |
Tank Thickness | 4-6 mm (customizable) |
ABS | YES |
Equipments | Arc Gear Oil Pump (capable of pumping in and out), Single compartment (multiple compartments customizable), Complete bottom loading system (including 1 bottom loading/unloading valve, 1 vapor recovery valve, 1 vapor recovery adapter, 1 set of pneumatic combination switches, 1 overfill prevention probe, and 1 socket), One European standard tank manhole cover, One bottom loading valve / emergency valve, One toolbox, Two hoses, Two fire extinguishers. |
The above mentioned figures are approximate.
