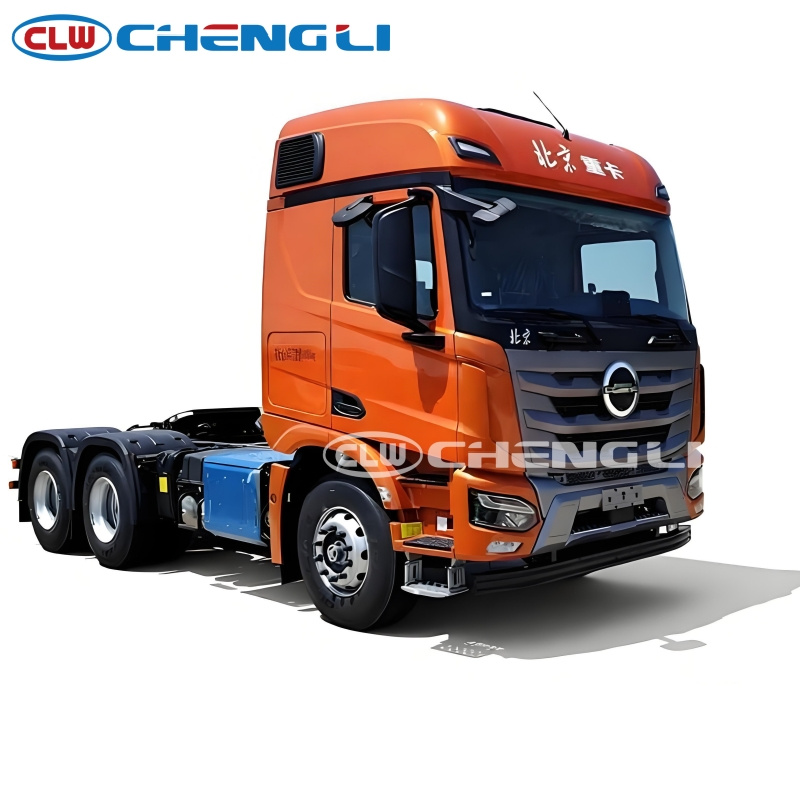

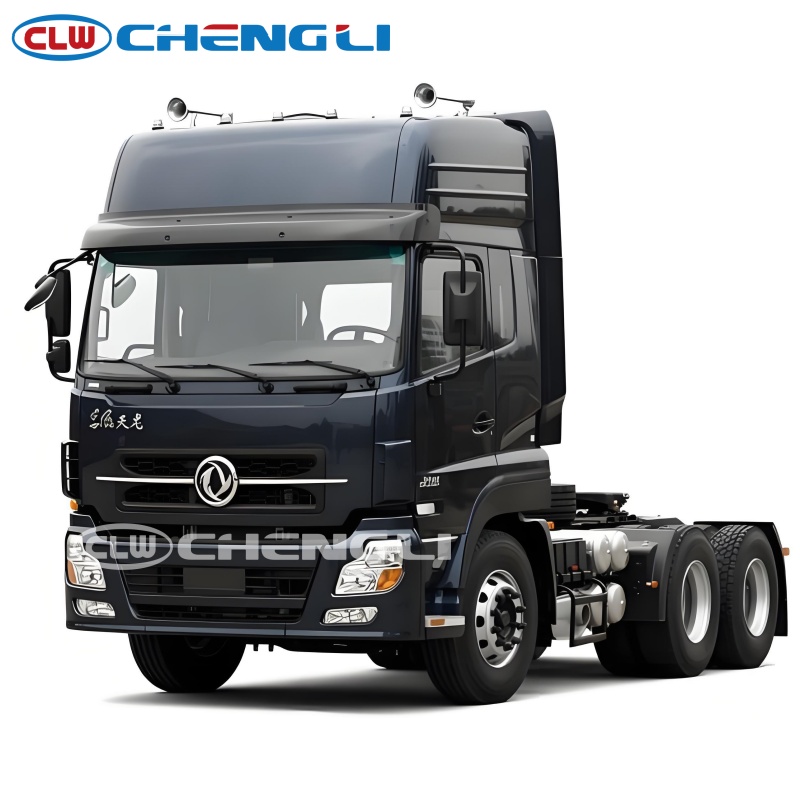

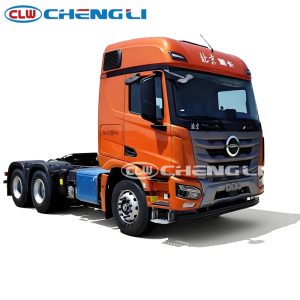

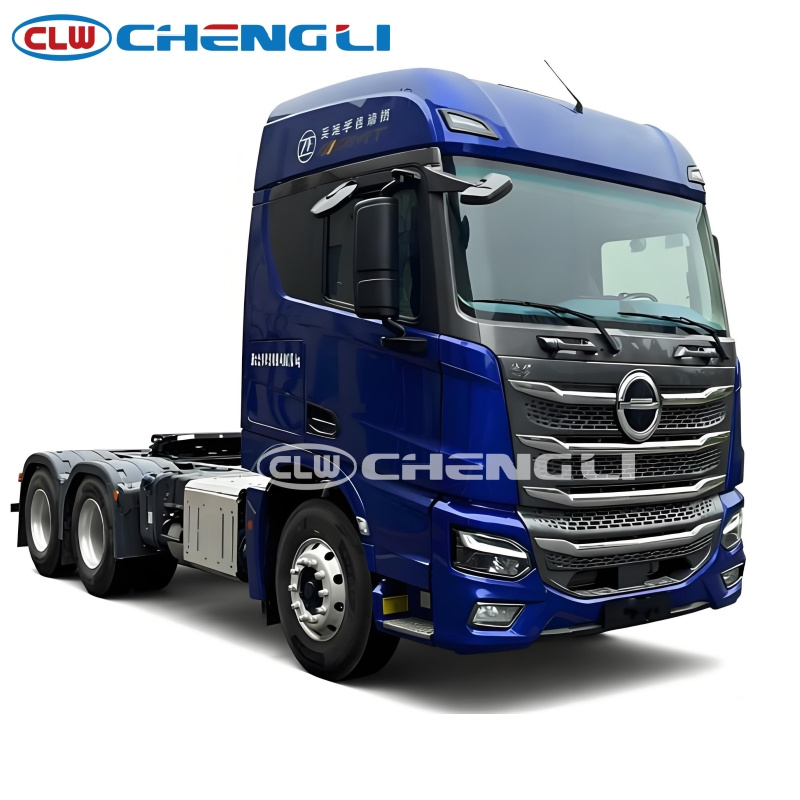

FEATURES
600HP DDi13 Engine with AMT:
Equipped with a Dongfeng original 12.9L large-displacement engine with a maximum power of 600 horsepower, matched with a DA12 AMT automatic transmission and a 2.56 small-ratio rear axle, this 25Tons LNG Tractor Head offers smooth shifting, lower fuel consumption, and is specially designed for long-haul logistics.
25T GVWR + 40T Towing Capacity:
With a 6×4 drive configuration, a gross vehicle weight of 25,000 kg, and a permissible towing gross vehicle weight of up to 40,000 kg, coupled with a high-strength frame and 10 high-load-bearing 295/80R22.5 tires, it is more than capable of handling heavy-duty transportation.
EBS Braking + Advanced Safety:
Standard configuration includes EBS electronic braking system (integrated with ABS) for faster braking response; a driving recorder with satellite positioning function monitors vehicle status in real time, and an optional speed limiter ensures comprehensive driving safety.
Comfortable Cab + Smart Features:
The 25 tons LNG tractor head features an extended cab that accommodates two people with ample space. It is equipped with a multi-function steering wheel, a central color screen, a reversing camera, and power windows/rearview mirrors, making long-distance driving more comfortable and convenient.
SPECIFICATIONS
| Parameter | Details |
|---|---|
| Vehicle Model | DFV4259GP6N2 |
| Configuration | 6×4 Semi-trailer Tractor |
| Fuel Type | LNG (Liquefied Natural Gas) |
| Gross Vehicle Weight | 25,000 kg (25 Tons) |
| Curb Weight | 8,800 – 9,600 kg |
| Engine Options | WP13NG520E60: 382kW (520HP), 13.26L WP13NG540E60: 397kW (540HP), 13.26L YCK15630N-60: 457kW (630HP), 15.6L (available in later batches) |
| Max Towing Capacity | 40,000 kg / 39,600 kg / 39,000 kg |
| Saddle Max Load | 16,070 kg / 16,005 kg / 15,670 kg / 15,605 kg / 15,270 kg / 15,205 kg |
| Wheelbase | 3800+1350 mm / 3900+1350 mm |
| Max Speed | 89 km/h |
| Tire Options | 11.00R20 18PR, 12R22.5 18PR, 295/80R22.5 18PR |
| Axle Configuration | 3 axles (Front: 7,000 kg; Rear tandem: 18,000 kg) |
| Emission Standard | GB17691-2018 National VI (Euro VI equivalent) |
| ABS System | 3631010-C2000 (Dongfeng), ABS 8 (Dongfeng), VIE ABS/ESC-Ⅱ (Wan’an) |
| Overall Dimensions | 7440/7460/7540/7560 × 2500/2550 × 2960-3960 mm |
