FEATURES

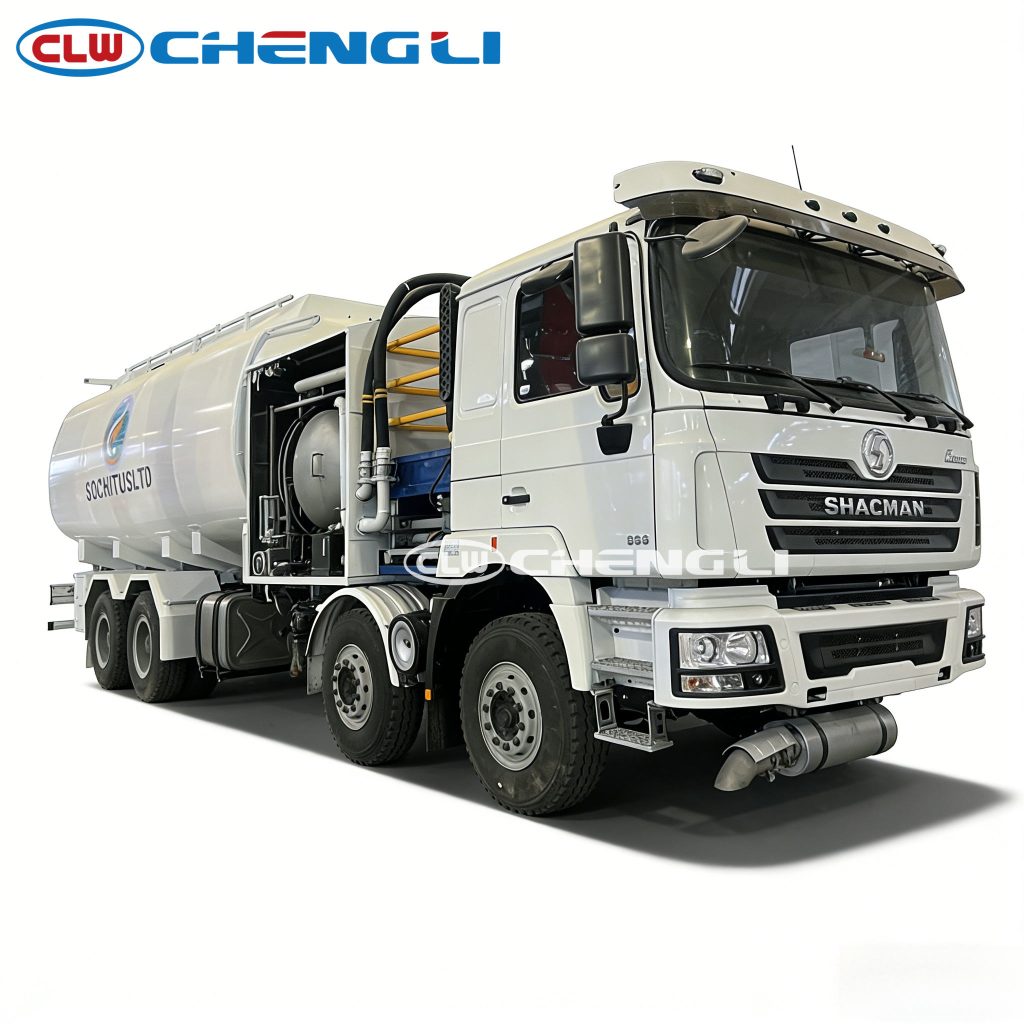

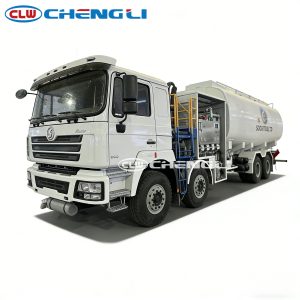

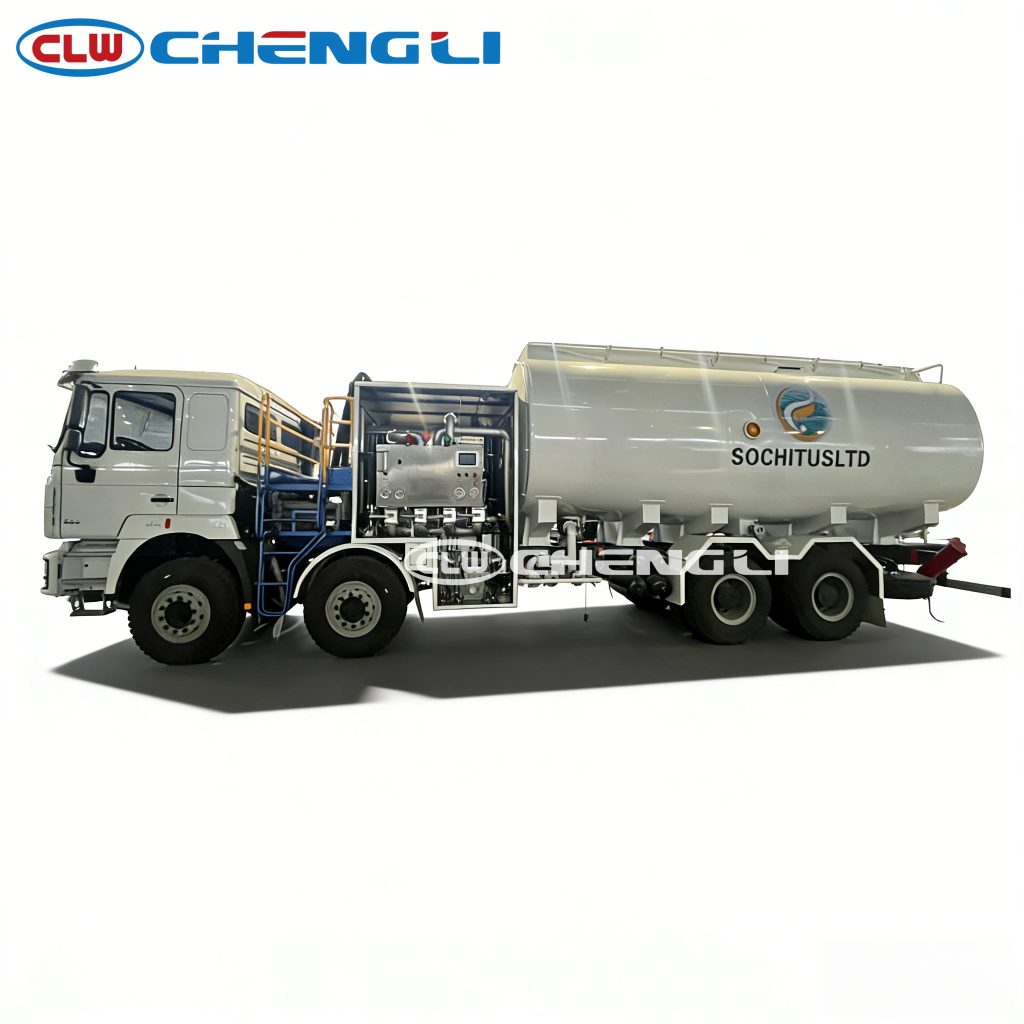

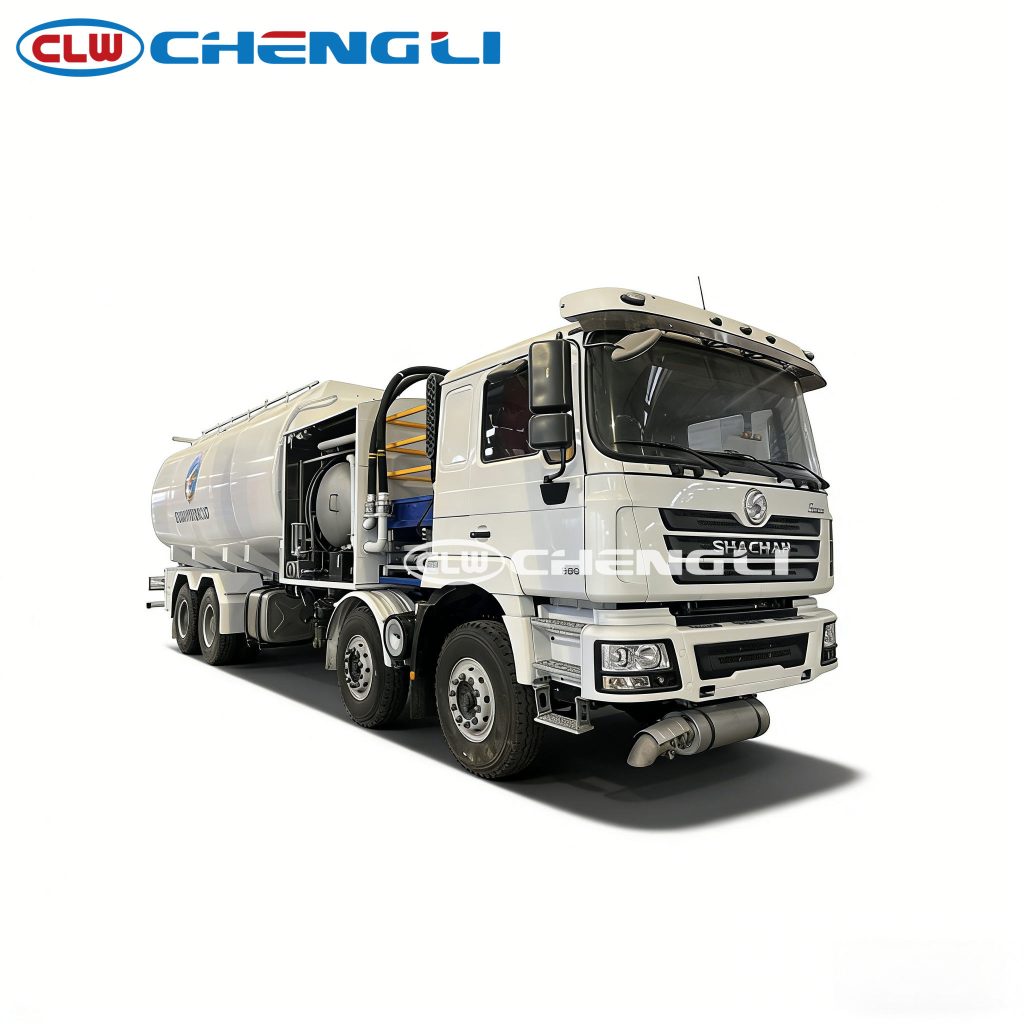

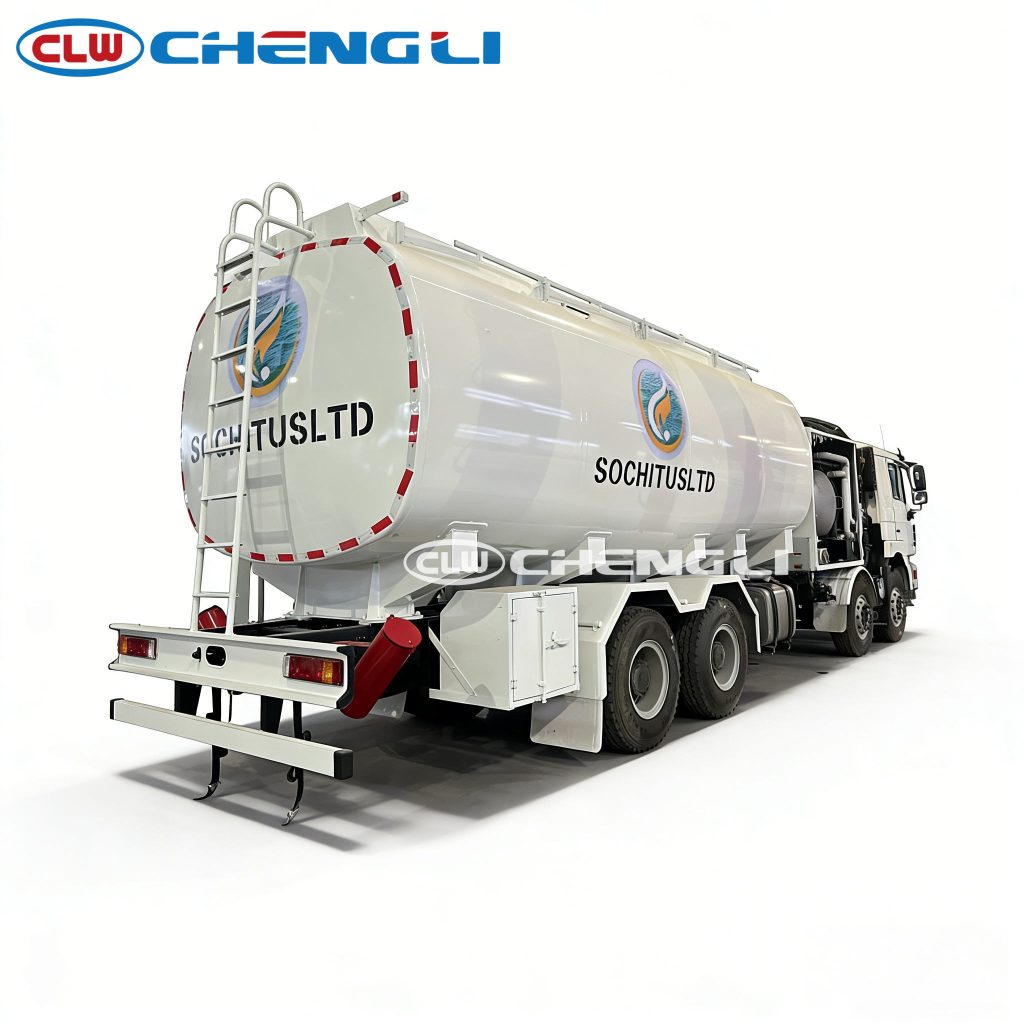

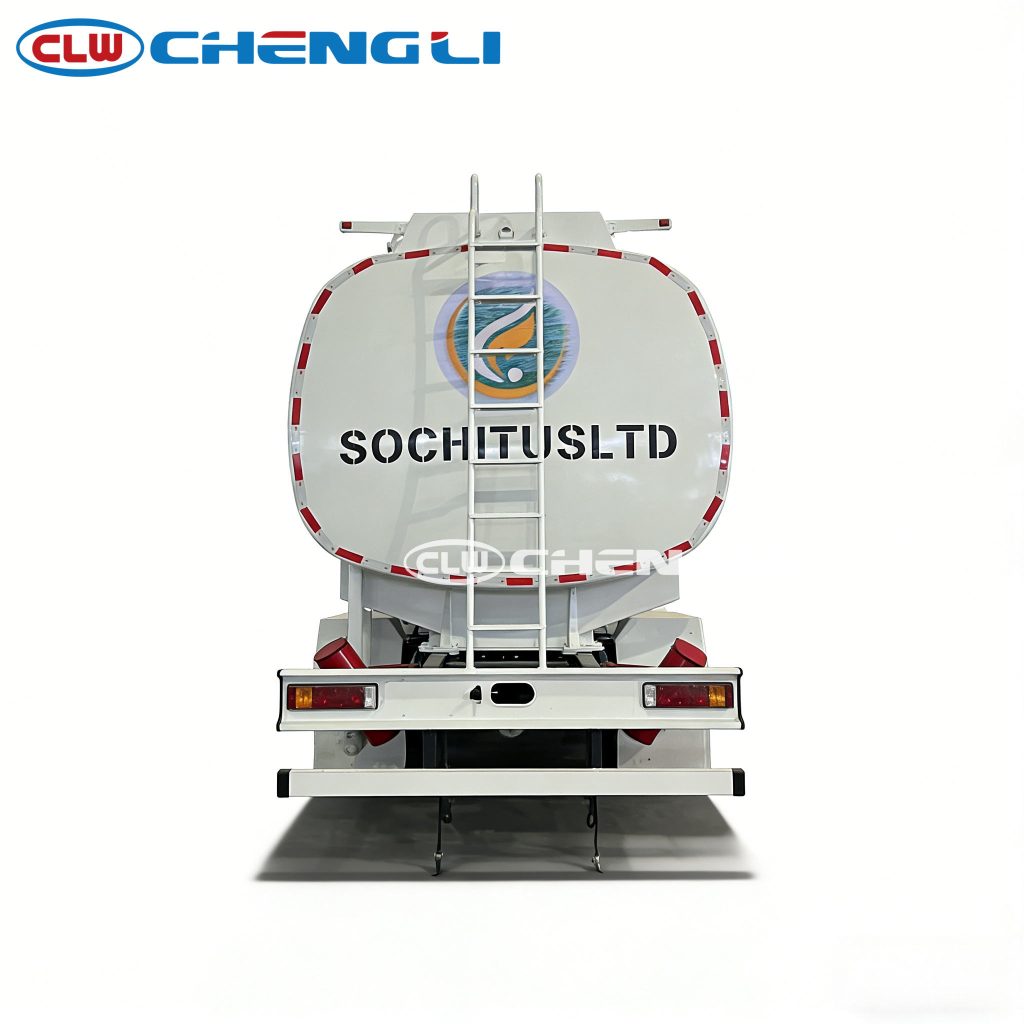

1. 20 CBM Large Capacity Aluminum Alloy Fuel Tank
The tanker is equipped with a 20 cubic meter aviation fuel tank made of high-strength 5182 aluminum alloy, offering excellent corrosion resistance, lightweight structure, and enhanced safety for transporting aviation kerosene and aviation gasoline.
2. High-Precision Aviation Refueling System
The 20 CBM Refuelling Tanker Truck is fitted with dual hydraulic hose reels (20 m each) and aviation refueling guns, featuring large-digit flow meters with 0.2 accuracy class, ensuring precise fuel measurement and efficient aircraft refueling operations.
The 20 CBM Refuelling Tanker Truck is fitted with dual hydraulic hose reels (20 m each) and aviation refueling guns, featuring large-digit flow meters with 0.2 accuracy class, ensuring precise fuel measurement and efficient aircraft refueling operations.
3. High Flow Rate Aviation Fuel Delivery
Designed for rapid aircraft fueling, the system supports 500 L/min and 850–1200 L/min fueling flow rates, enabling fast refueling for commercial aircraft, cargo planes, and helicopters at airports.
Designed for rapid aircraft fueling, the system supports 500 L/min and 850–1200 L/min fueling flow rates, enabling fast refueling for commercial aircraft, cargo planes, and helicopters at airports.
4. Advanced Aviation Fuel Filtration System
Equipped with a high-efficiency coalescing separator (90F/hour), the refueling truck effectively removes water and impurities from aviation fuel, ensuring high fuel purity and meeting international aviation fueling standards.
Equipped with a high-efficiency coalescing separator (90F/hour), the refueling truck effectively removes water and impurities from aviation fuel, ensuring high fuel purity and meeting international aviation fueling standards.
5. Complete Aviation Safety Protection System
The 20 CBM Refuelling Tanker Truck includes anti-overflow protection, vapor recovery system, anti-static grounding, explosion-proof lighting, and pressure monitoring system, ensuring safe operation during airport refueling tasks.
The 20 CBM Refuelling Tanker Truck includes anti-overflow protection, vapor recovery system, anti-static grounding, explosion-proof lighting, and pressure monitoring system, ensuring safe operation during airport refueling tasks.
6. Efficient Pumping and Hydraulic Drive System
The 20 CBM Refuelling Tanker Truck adopts a self-priming centrifugal pump with PTO-driven hydraulic station, providing stable pumping performance and reliable fuel transfer during aircraft refueling operations.
The 20 CBM Refuelling Tanker Truck adopts a self-priming centrifugal pump with PTO-driven hydraulic station, providing stable pumping performance and reliable fuel transfer during aircraft refueling operations.
SPECIFICATIONS
BASIC INFORMATION | |
Product Model | 20CBM Refueling Tanker Truck |
Overall Dimension | Customized |
Tank Capacity | 20,000 L |
GVW | 18000 kg |
The above mentioned figures are approximate.
