FEATURES
Advanced Hydrogen Power for Zero-Emission Performance

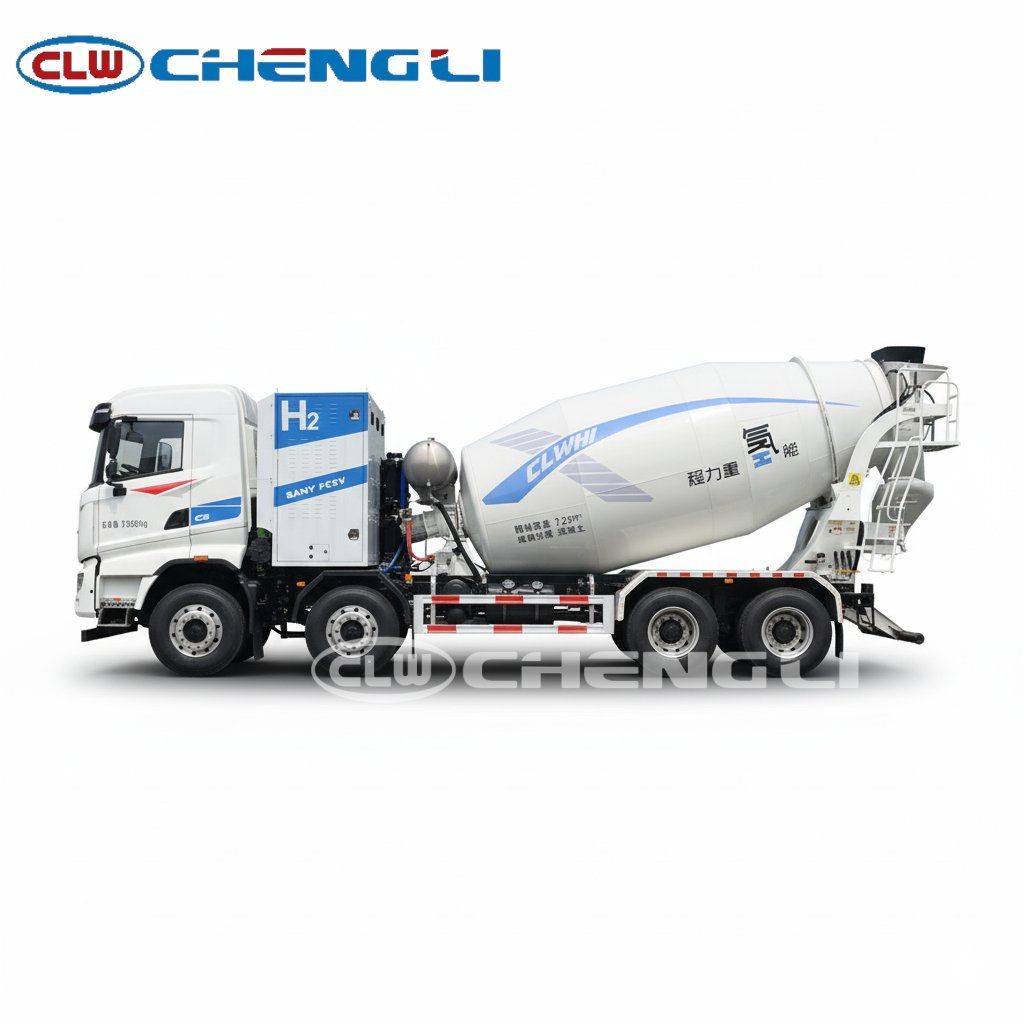

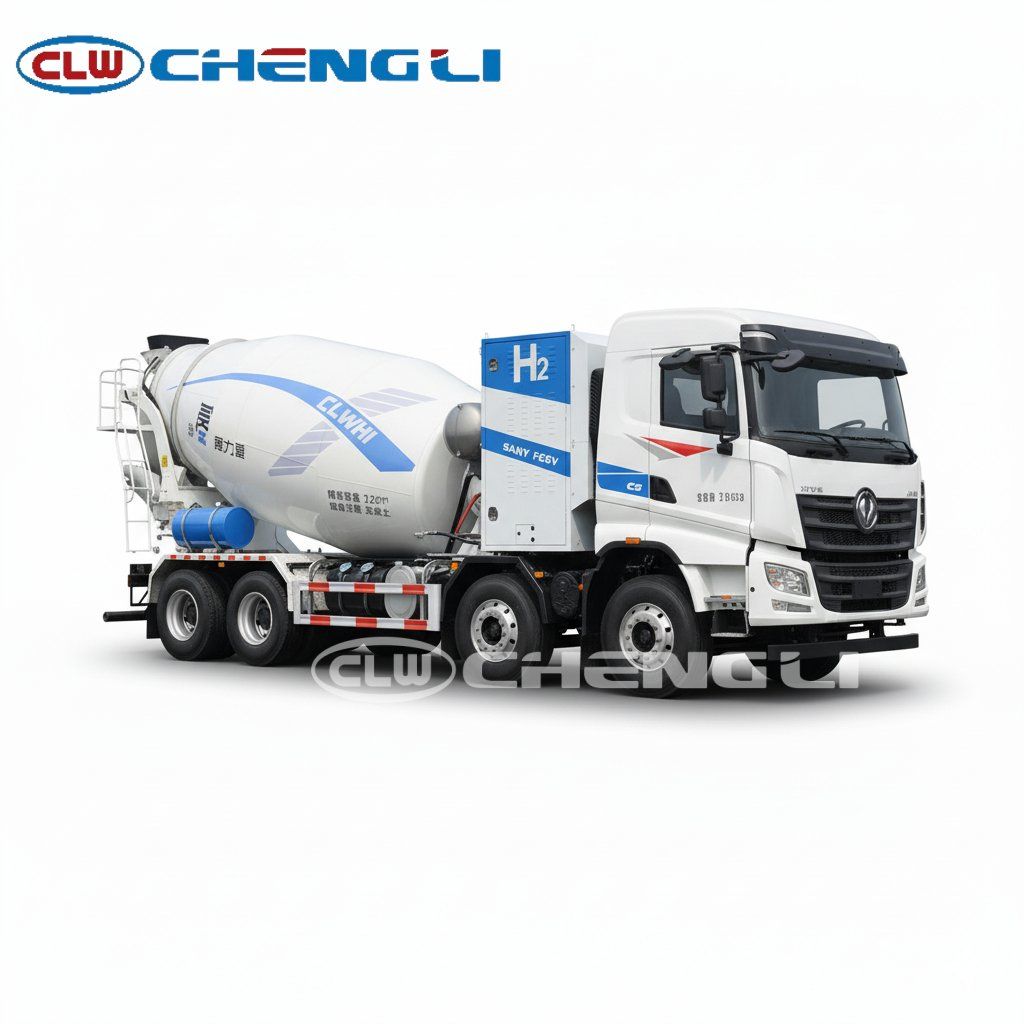

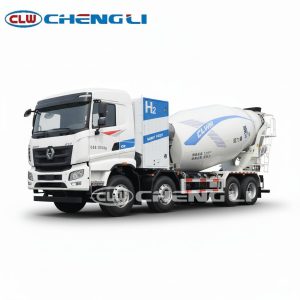

The Fuel Cell Concrete Mixer Truck is equipped with cutting-edge hydrogen fuel cell technology, making it a true zero-emission solution for modern construction projects. Unlike traditional diesel-powered vehicles, this Fuel Cell Concrete Mixer Truck produces only water as a byproduct, significantly reducing carbon footprint. With increasing global demand for sustainable transport, the Fuel Cell Concrete Mixer Truck is becoming the preferred choice for environmentally conscious contractors and infrastructure developers.
High Capacity 16m³ Mixing Efficiency

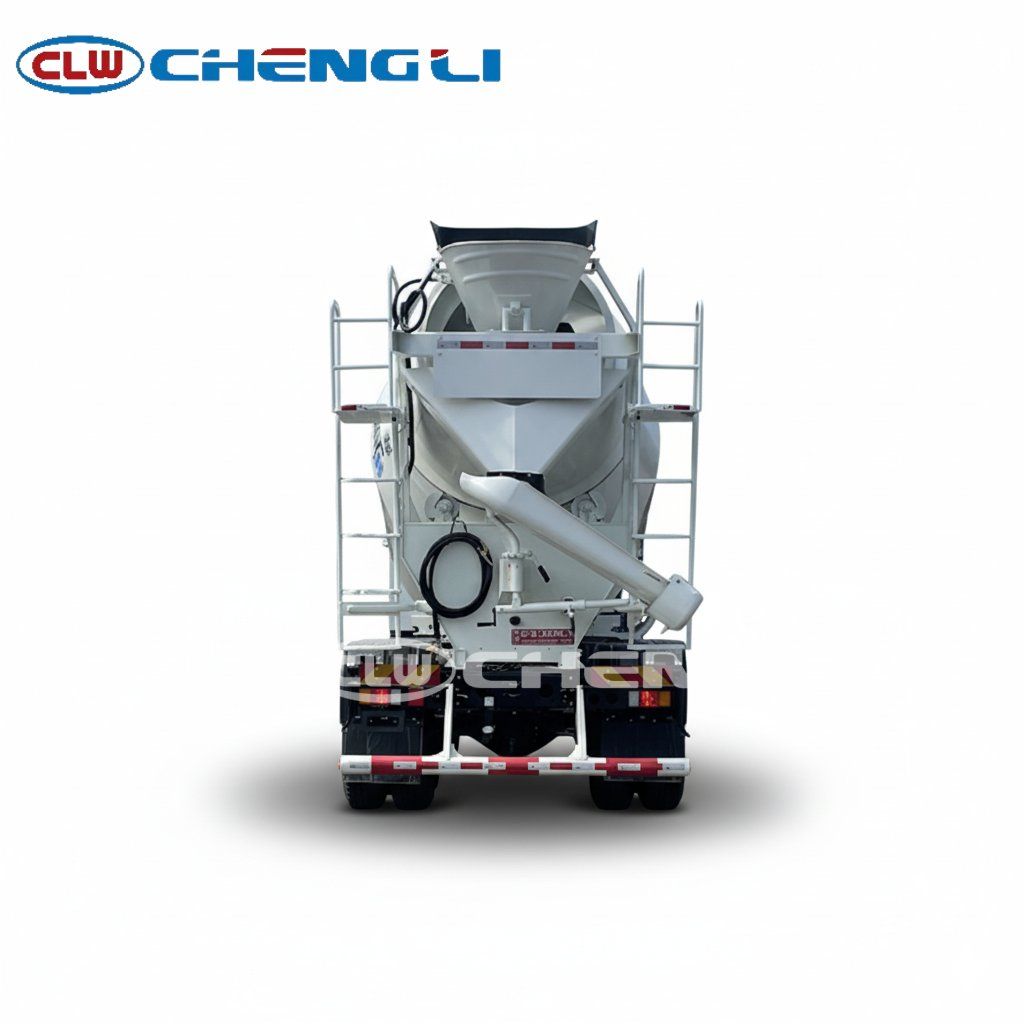

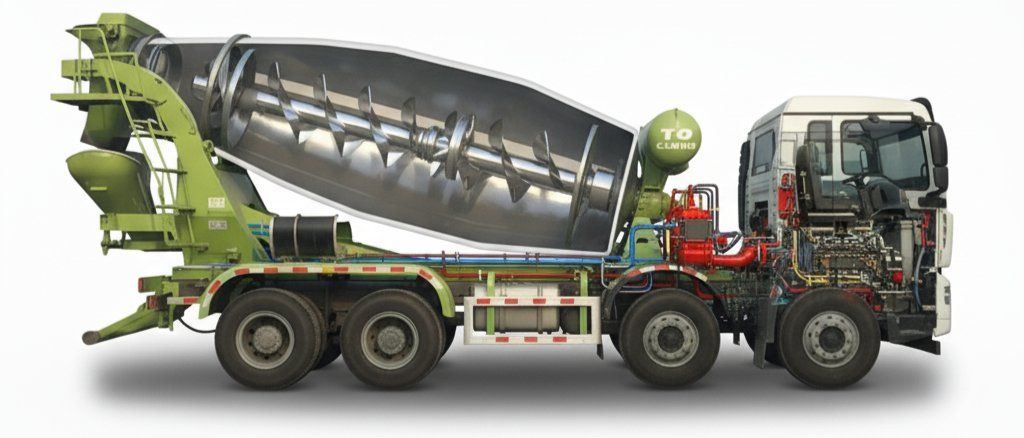

Designed for heavy-duty operations, the Fuel Cell Concrete Mixer Truck offers a rated payload of 16,000 kg and an optimized 16m³ mixing drum. This ensures efficient transportation of concrete while maintaining consistent material quality. The drum structure of the Fuel Cell Concrete Mixer Truck minimizes segregation and guarantees uniform mixing during transit, which is critical for large-scale construction projects.
Powerful Electric Drive System (355 kW)
At the heart of the Fuel Cell Concrete Mixer Truck is a high-performance electric motor delivering 355 kW (482 HP). This powerful system provides strong torque output, ensuring that the Fuel Cell Concrete Mixer Truck operates smoothly even under full load conditions. Whether navigating urban roads or rugged job sites, the Fuel Cell Concrete Mixer Truck maintains stable and reliable performance.
Durable 4-Axle Structure with Enhanced Safety

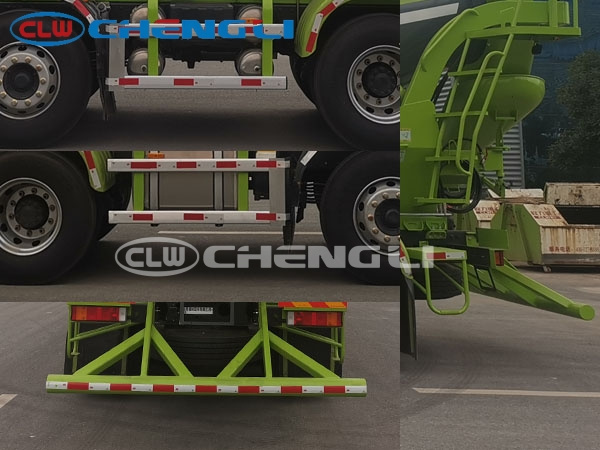

The Fuel Cell Concrete Mixer Truck features a robust 4-axle configuration designed for maximum load capacity and road stability. Combined with an advanced ABS braking system, the Concrete Mixer Truck ensures safer driving and better control, especially in demanding environments. Its reinforced chassis and suspension system further enhance durability, making the Fuel Cell Concrete Mixer Truck a reliable choice for long-term use.
SPECIFICATIONS
| Item | Specification |
|---|---|
| Overall Dimension | 10600 × 2530 × 3995 mm |
| Gross Vehicle Weight | 31,000 kg |
| Curb Weight | 14,870 kg |
| Rated Payload | 16,000 kg |
| Axle Configuration | 4 Axles |
| Wheelbase | 1700 + 3800 + 1350 mm |
| Max Speed | 85 km/h |
| Tire Specification | 11R22.5 / 12R22.5 |
| Number of Tires | 12 |
| Front/Rear Overhang | 1480 / 2270 mm |
| Approach/Departure Angle | 16° / 17° |
| Motor Model | TZ460XS-LKM2402 |
| Motor Power | 355 kW / 482 HP |
| Energy Type | Hydrogen Fuel Cell |
