FEATURES

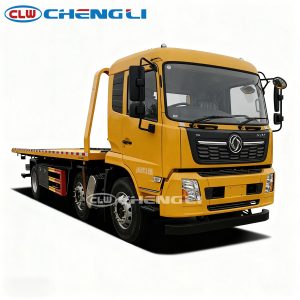

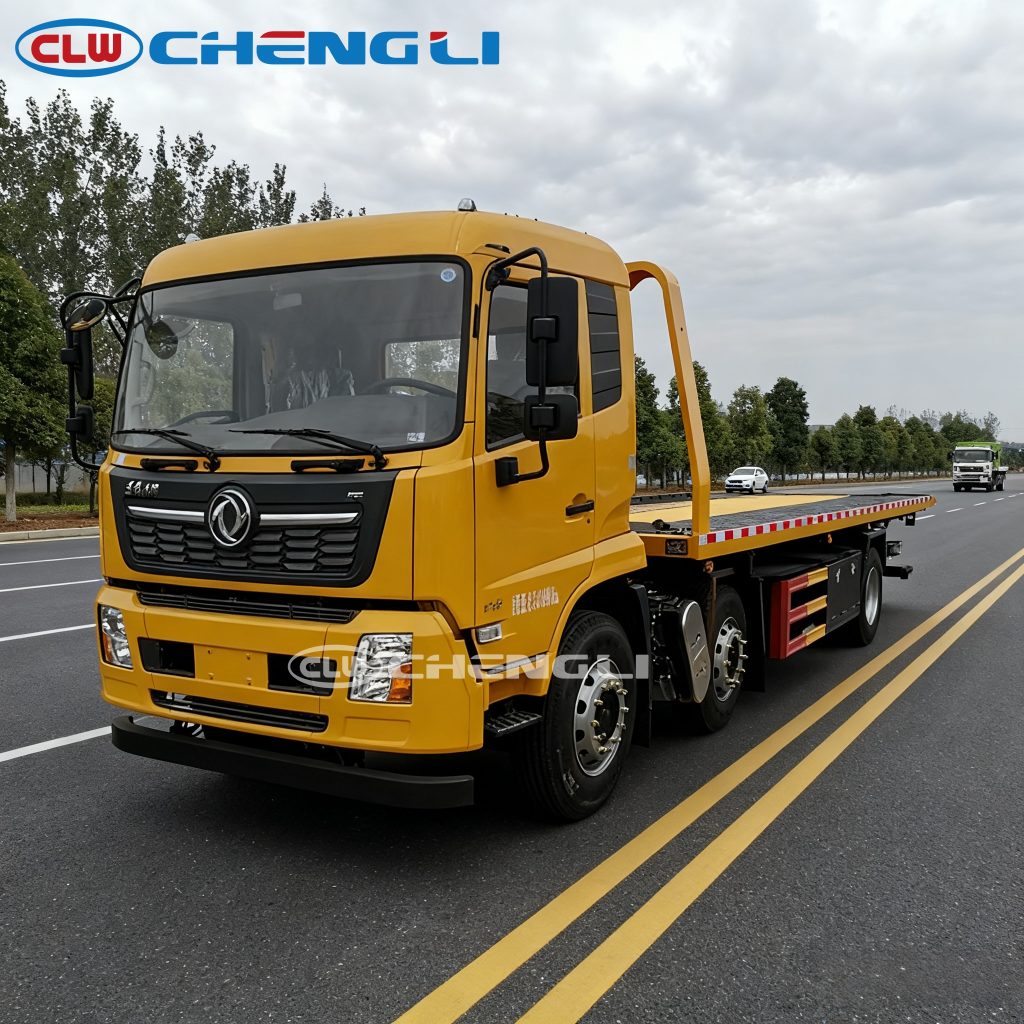

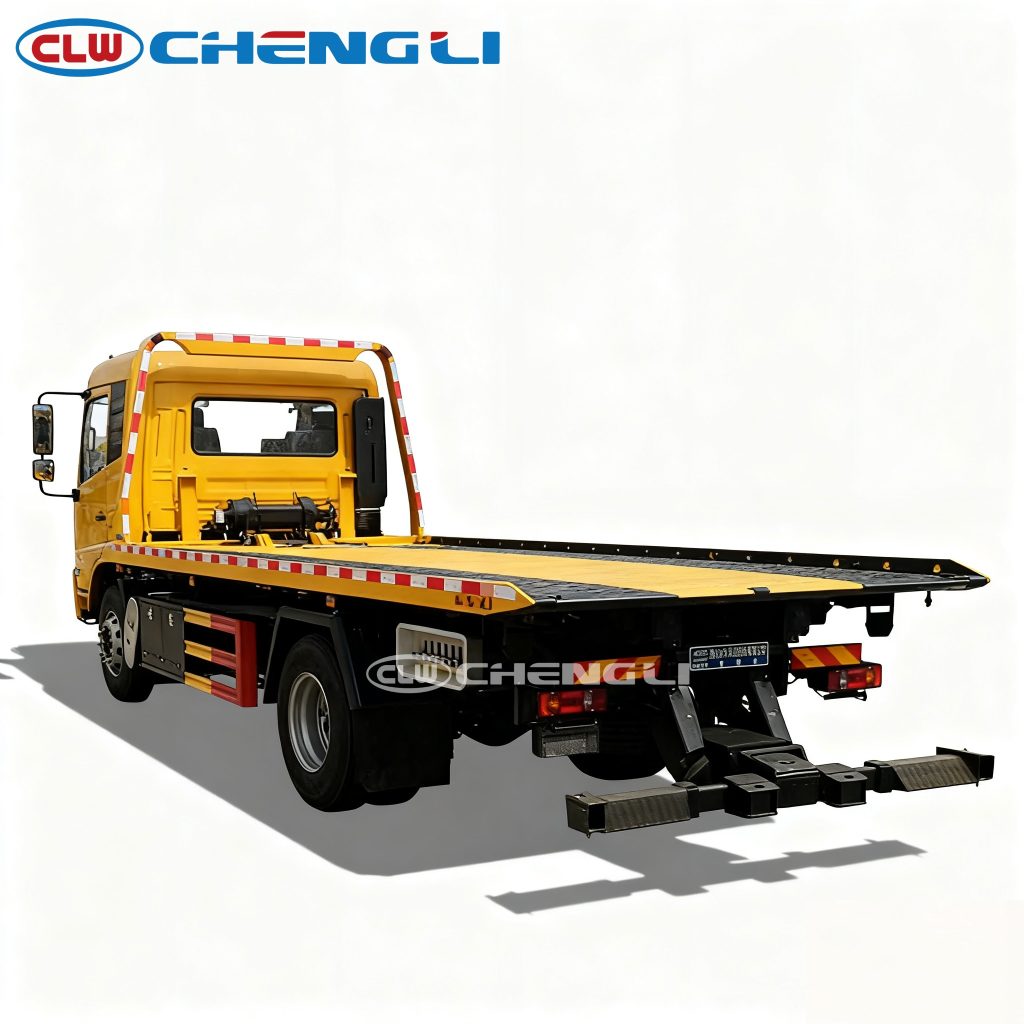

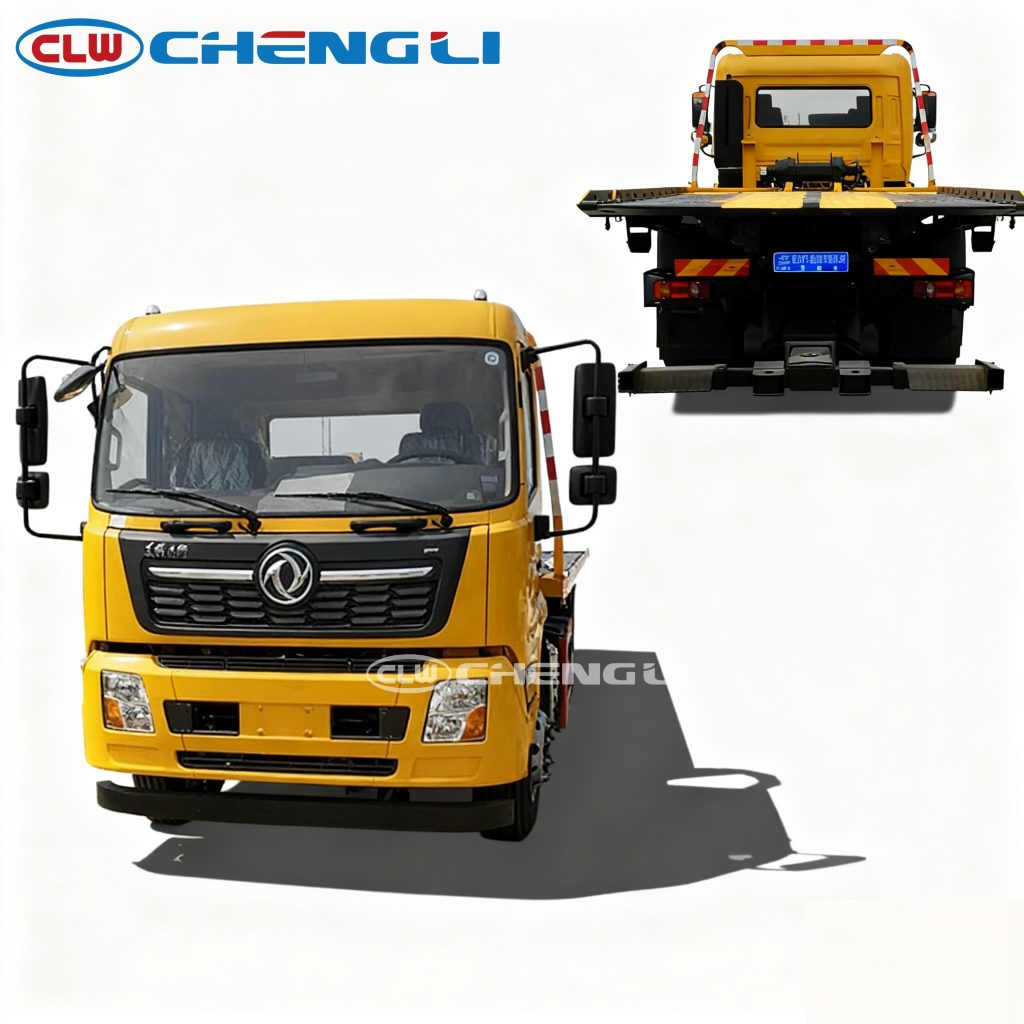

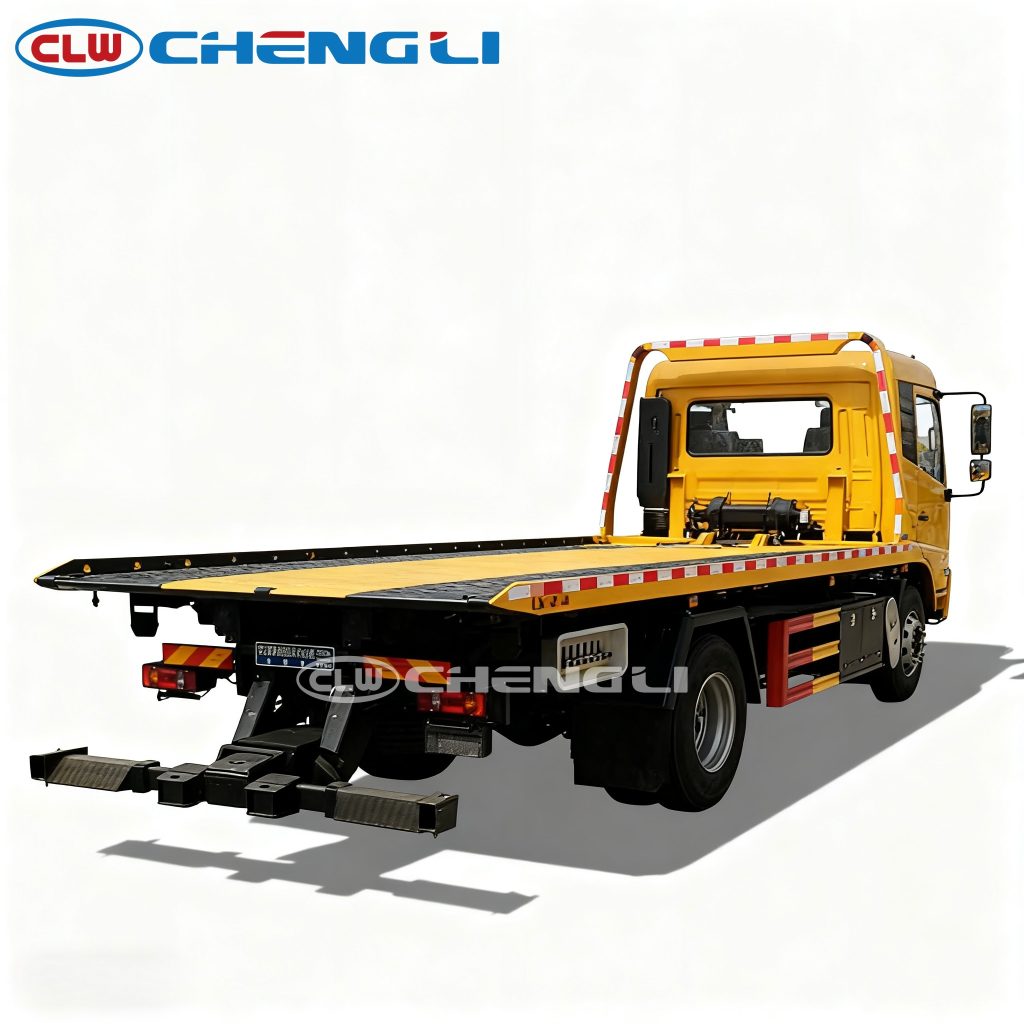

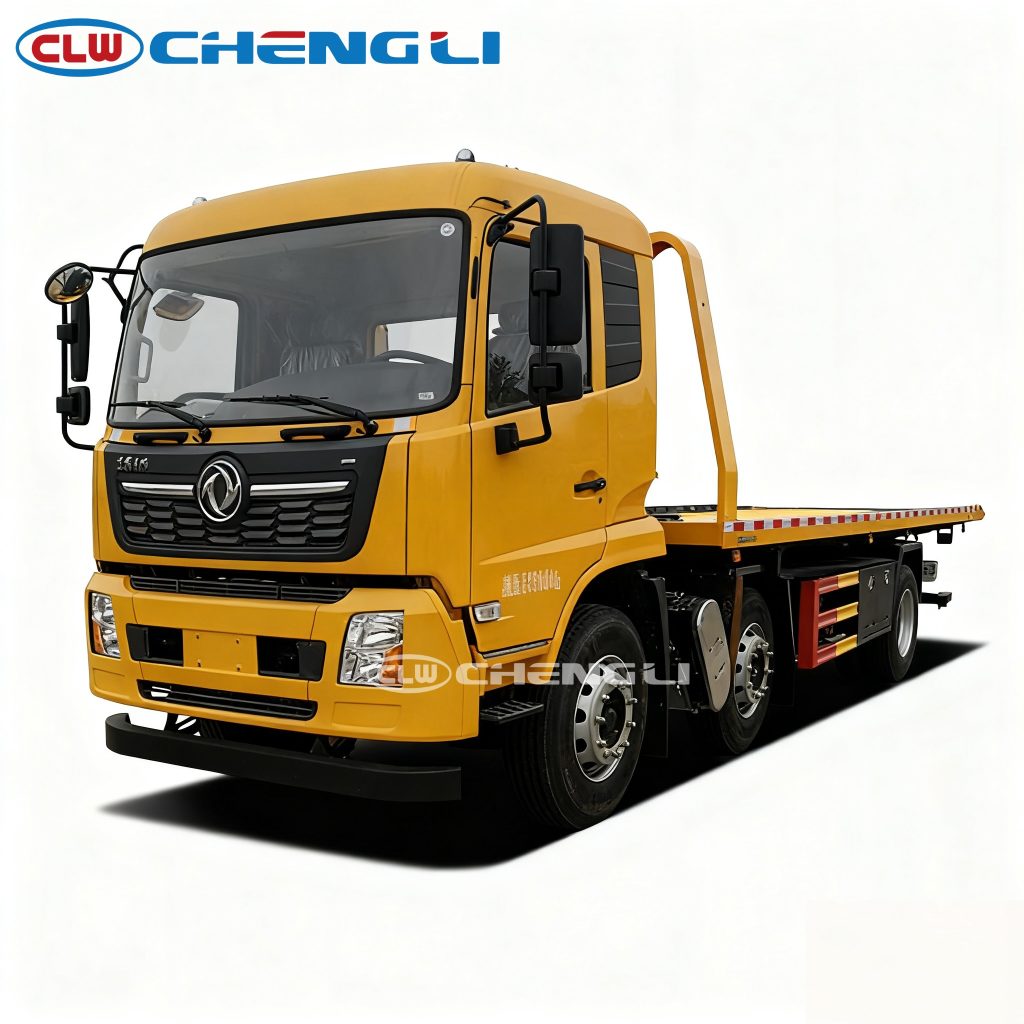

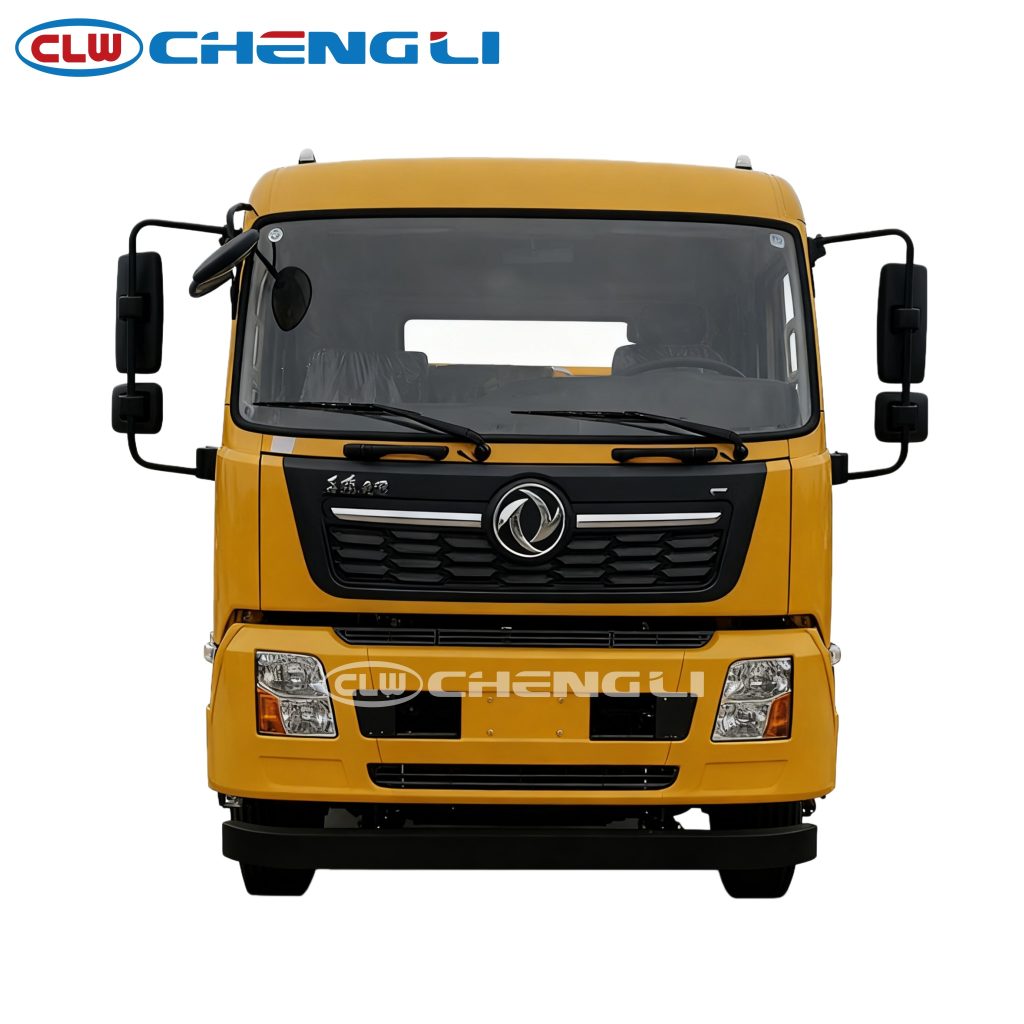

Dongfeng 7-Ton Flatbed Tow Truck Chassis
High-Strength Steel Frame: The chassis is constructed from high-tensile, reinforced steel to resist twisting and bending when hauling maximum loads, ensuring the Dongfeng 7-Ton Flatbed Tow Truck remains stable even on uneven terrain.
Enhanced Suspension System: It features upgraded heavy-duty leaf springs or air suspension systems in the rear. This not only supports the weight of the recovery equipment but also absorbs the shock of carrying a loaded vehicle, providing a smoother ride and reducing stress on the truck’s frame.
GVWR (Gross Vehicle Weight Rating): Designed with a high GVWR, meaning the combined weight of the truck, its equipment, and the loaded vehicle is well within safety limits, preventing mechanical overload.
Dongfeng 7-Ton Flatbed Tow Truck with State-of-the-Art Towing Systems
Integrated Winch System: Flatbed Tow Truck comes equipped with a high-torque hydraulic or electric winch capable of pulling vehicles from ditches or onto the flatbed, often featuring synthetic ropes or steel cables with remote control operation for operator safety.
Wheel-Lift Technology: Instead of just a traditional hook and chain, modern systems utilize a hydraulic wheel-lift mechanism. This lifts the towed vehicle by its wheels, preventing damage to the vehicle’s body or bumper.
Automated Control Panel: Flatbed Tow Truck features a centralized digital control panel, either inside the cab or on the exterior, allowing the operator to precisely control the boom, winch, and stabilizers via joysticks.
Dongfeng 7-Ton Flatbed Tow Truck with Versatile Towing Capability
Adjustable Boom: The towing boom is often telescopic and adjustable, allowing operators to change the length and angle to safely secure vehicles of different sizes and shapes, from compact cars to tall vans.
Comprehensive Lighting: Dongfeng 7-Ton Flatbed Tow Truck includes a fully integrated magnetic or LED lighting system that connects to the towed vehicle, ensuring all turn signals, brake lights, and hazard lights remain functional during transport, complying with road safety laws.
Multiple Securing Points: The flatbed or underlift is fitted with multiple adjustable tie-down points and axle straps to securely fasten light commercial vehicles (like cargo vans) without shifting during transit.
SPECIFICATIONS
Product Model | Dongfeng 7-Ton Flatbed Tow Truck |
Brand | Dongfeng |
Type | Flatbed Transport Truck |
Emission Standard | Euro 2/3/4/5/6 |
Gross Vehicle Weight (GVW) | 12500 kg |
Curb Weight | 2500 kg |
Rated Load Capacity | 10000 kg |
Seating Capacity | 2, 3 persons |
Overall dimension | 5995 × 2500 × 2450 mm |
Wheelbase | 3800 mm |
Emission Standard | Euro 2/3/4/5/6 |
