FEATURES
Powerful 170HP Diesel Engine

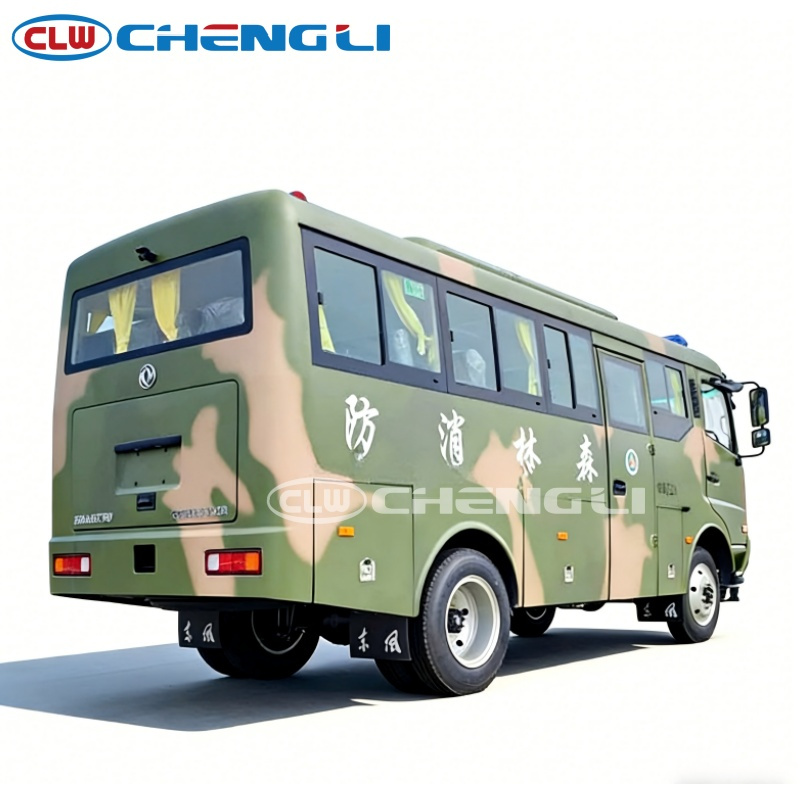

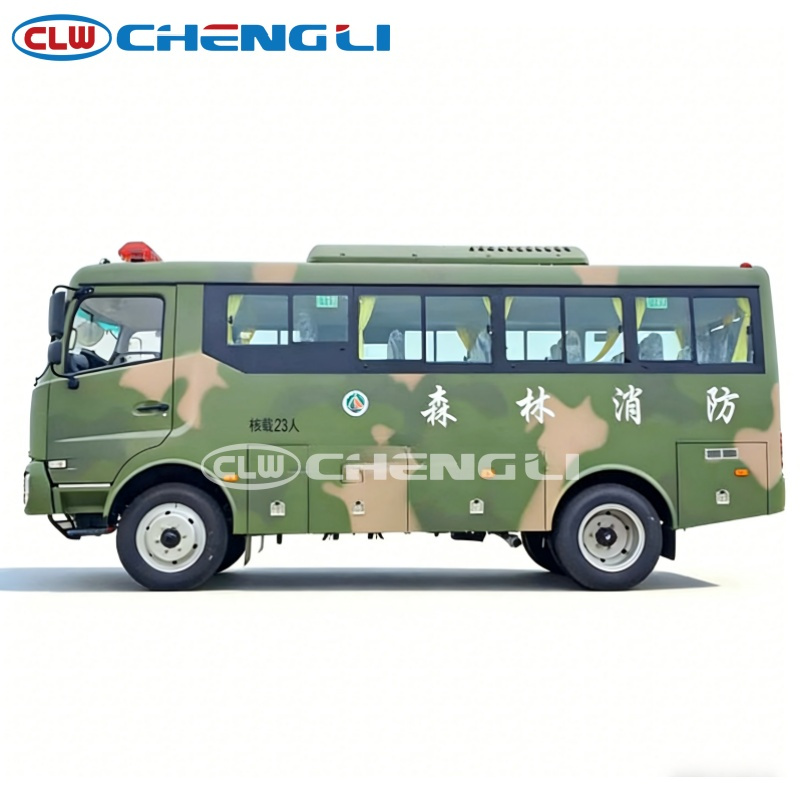

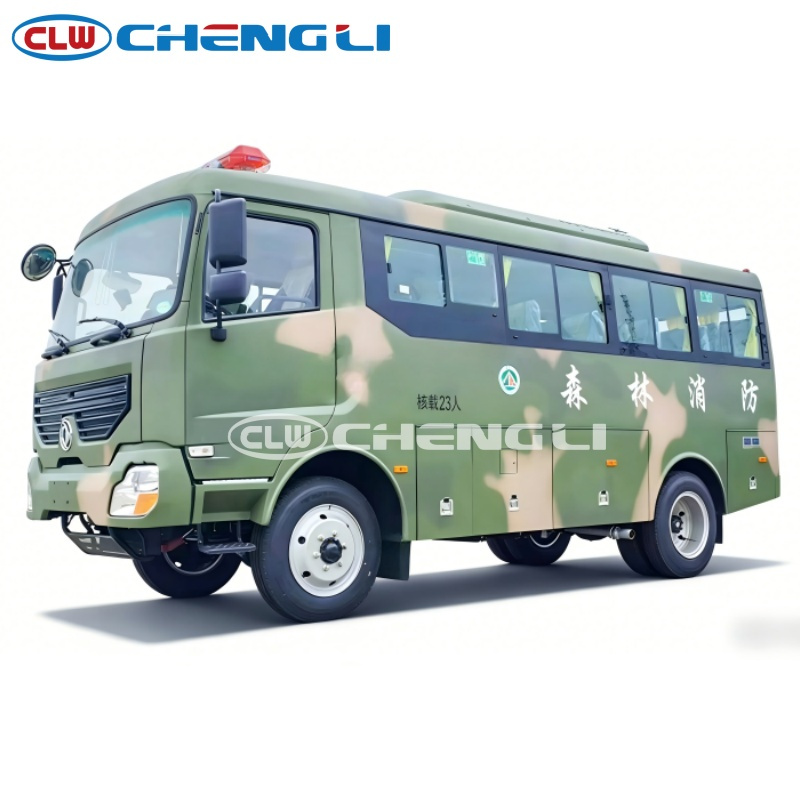

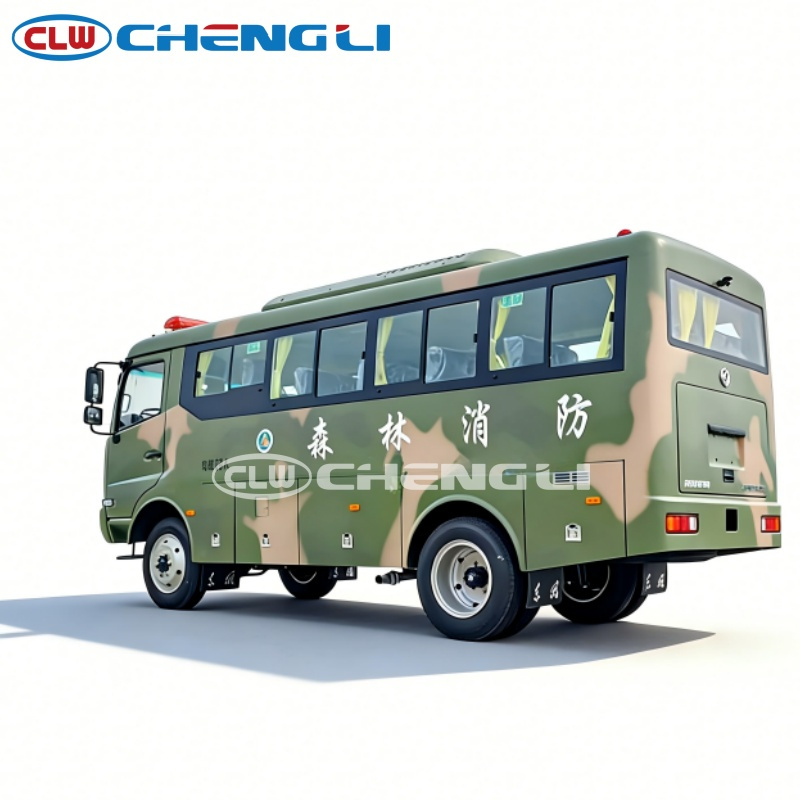

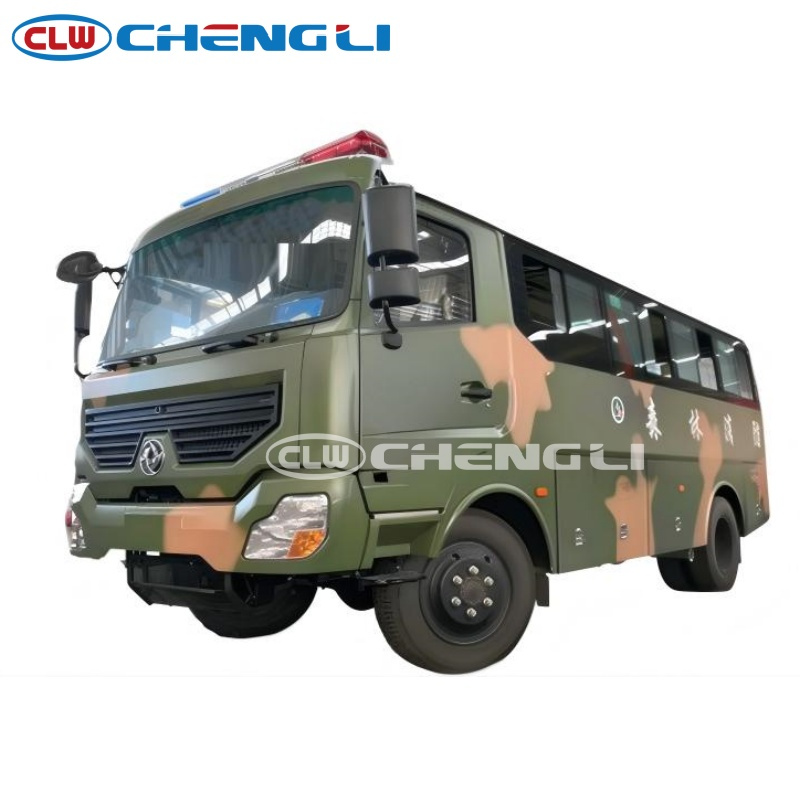

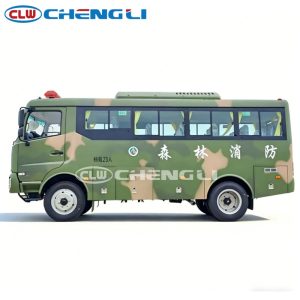

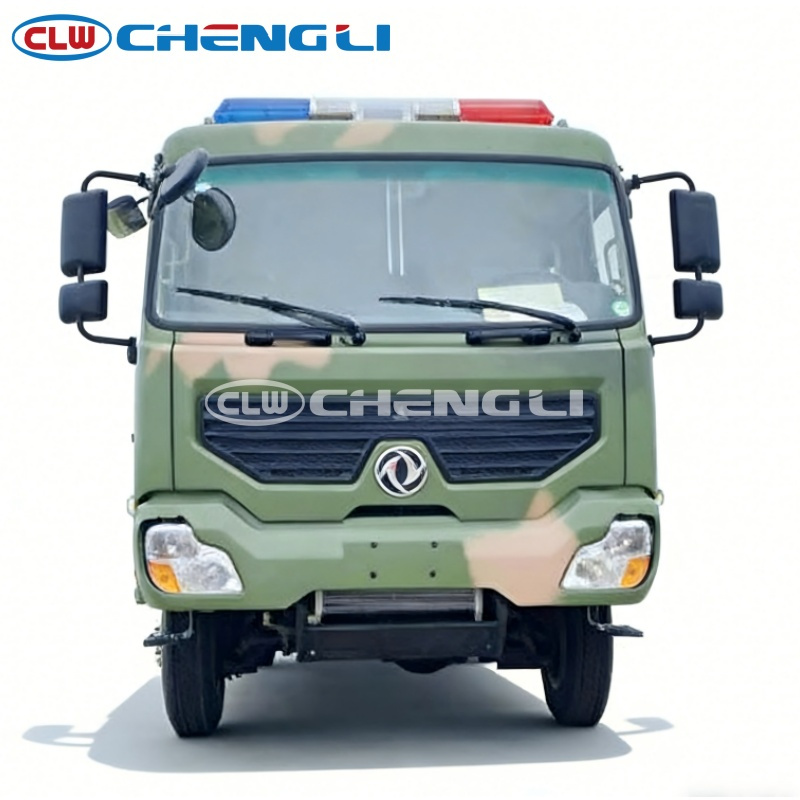

This 8 Tons 4WD All-Wheel Drive Passenger Coach Bus is equipped with a Weichai WP4.1NQ170E61 diesel engine delivering 170HP and 600Nm peak torque . The 4.1L displacement provides exceptional low-end power for climbing steep mining roads and navigating soft terrain, meeting China VI/Euro VI emission standards for clean operation.
Military-Grade 4X4 All-Wheel Drive System
Heavy-Duty Off-Road Chassis
This 8 Tons 4WD Coach Bus features a reinforced ladder frame chassis with 10/10+8 leaf spring suspension and 8R19.5 heavy-duty off-road tires (12-ply rating) . With 330mm ground clearance and 22°/25° approach/departure angles, it conquers steep grades up to 60% and navigates obstacles that stop standard buses .
19-Passenger Capacity with Mine-Ready Configuration
Designed for personnel transport in harsh environments, this 4X4 off-Road Passenger Coach Bus accommodates up to 19 passengers with comfortable seating, seat belts for all positions, and optional independent fuel-fired heating for -30°C cold climate operation . The modular interior can be configured for command center, ambulance, or equipment transport roles.
SPECIFICATIONS
| Parameter | Details |
|---|---|
| Vehicle Type | 8 Tons 4WD All-Wheel Drive Passenger Coach Bus |
| Drive Configuration | 4×4 part-time with high/low range |
| Gross Vehicle Weight | 7,300 – 8,000 kg (8 tons) |
| Curb Weight | 5,450 kg |
| Overall Dimensions (L×W×H) | 5,990 × 2,280 × 3,030 mm |
| Engine Power | 170 HP (125 kW) |
