FEATURES
1. Heavy-Duty Load Capacity
- 60-ton rated load capacity for heavy construction machinery/overweight cargo
- Reinforced Q345B high-strength steel main beam with anti-twist frame design
- 4-6mm non-slip checkered steel floor + dense heavy-duty crossbeams

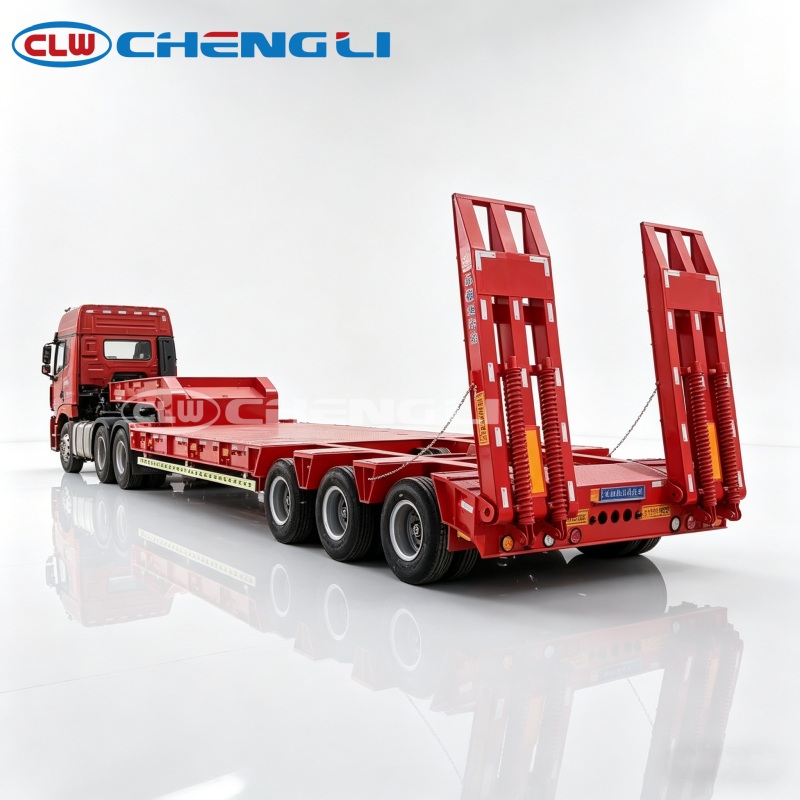

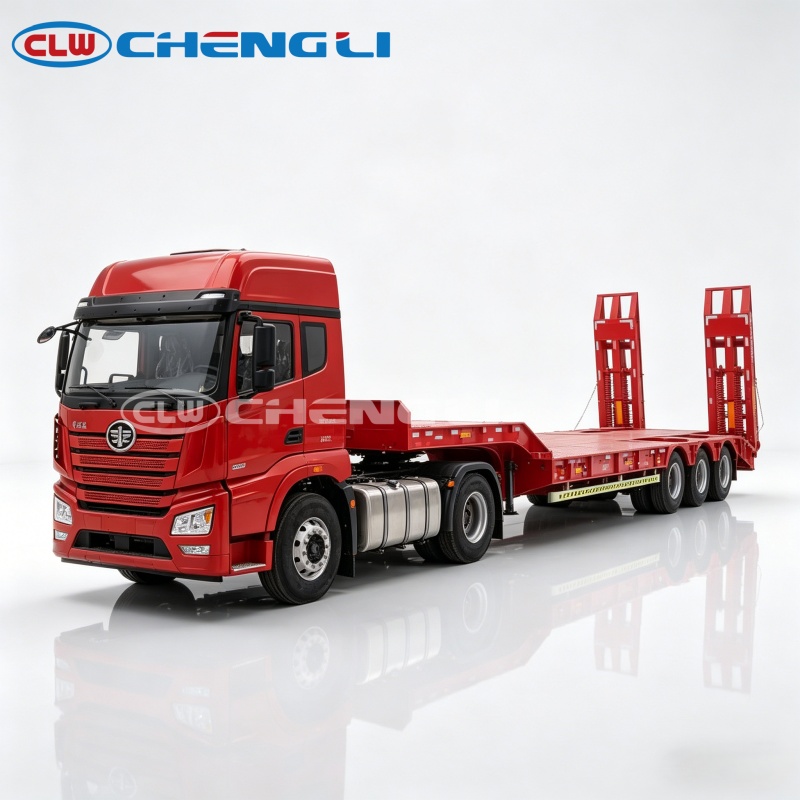

- 60T low bed semi trailer features ultra-low deck height (800-1000mm) for low center of gravity & stable transport
2. Chassis & Safety System
- 3-axle heavy-duty configuration (international standard axle model) for low bed semi trailer
- Dual-line air brake + ABS/EBS, compliant with global safety regulations
- 12.00R20 wear-resistant heavy-duty tires with reinforced wheel hubs
- 2″/3.5″ universal kingpin, compatible with all mainstream tractors
- High-brightness warning lights + reflective strips for all-weather safety
3. Loading & Operation Convenience

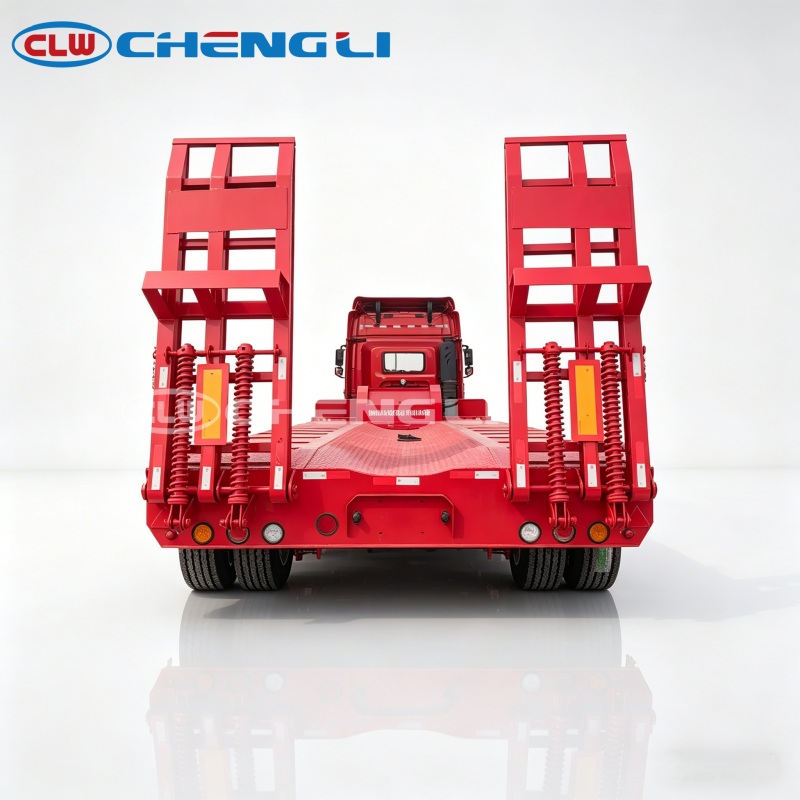

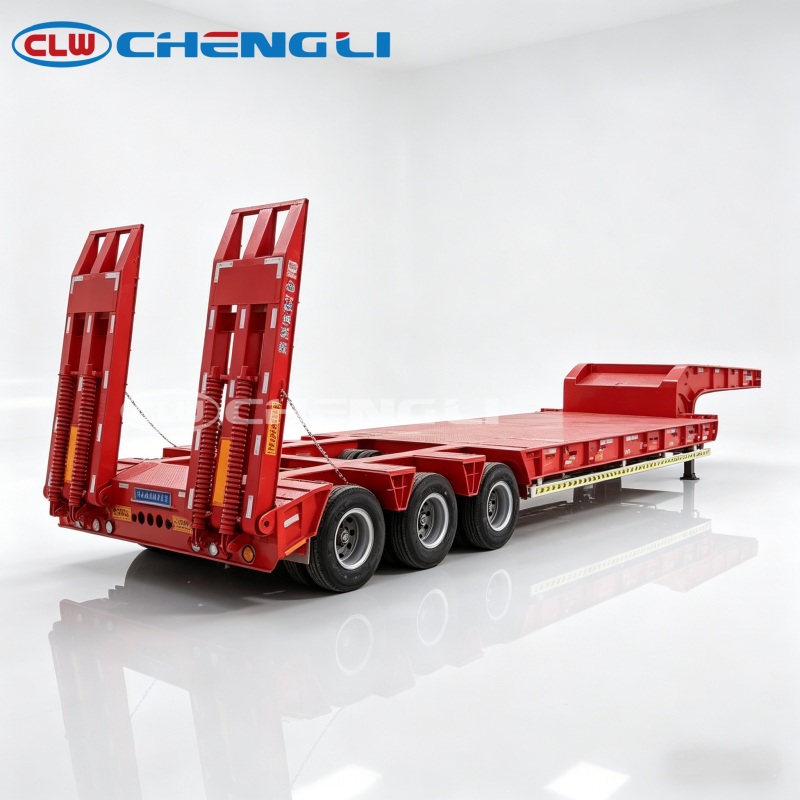

- Hydraulic folding ramps (standard) for self-drive loading/unloading (excavator/ bulldozer/crane)
- Multiple heavy-duty lashing points for secure cargo fastening
- Hydraulic heavy-duty landing legs for stable parking/loading
- Heavy duty semi trailer features two-way easy operation, no additional lifting equipment required
4. Basic Customization
- Customizable deck length/width for oversized cargo needs
- Optional air suspension (for better shock absorption)
- Customizable body color + logo printing
- Optional galvanized coating for enhanced corrosion resistance
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Axle Configuration | 2/3/4/5 Axles (Customizable) |
| Load Capacity | 40T – 150T (Based on Axle Number) |
| Main Beam Material | Q345B / T700 High-Strength Steel |
| Deck Height | 800mm – 1200mm (Ultra-Low Design) |
| Floor Material | 4mm – 6mm Non-Slip Checkered Steel Plate |
| Suspension | Leaf Spring / Air Suspension (With Axle Lifting Optional) |
| Loading Ramps | Hydraulic Folding / Manual Heavy-Duty Ramps |
| Braking System | Air Brake + ABS / EBS (Dual Control) |
| Kingpin | 2″/ 3.5″ (Optional, All Major Tractors) |
| Surface Treatment | Anti-Rust Paint / Powder Coating (50% Higher Adhesion) |
| Tire Size | 12.00R20 / 11.00-20 (Wear-Resistant & Heavy-Duty) |
The above mentioned figures are approximate.
