FEATURES
Robust Chassis Configuration

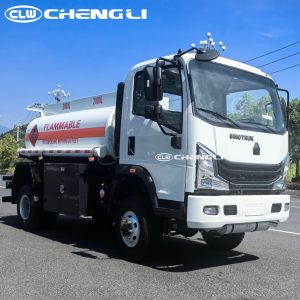

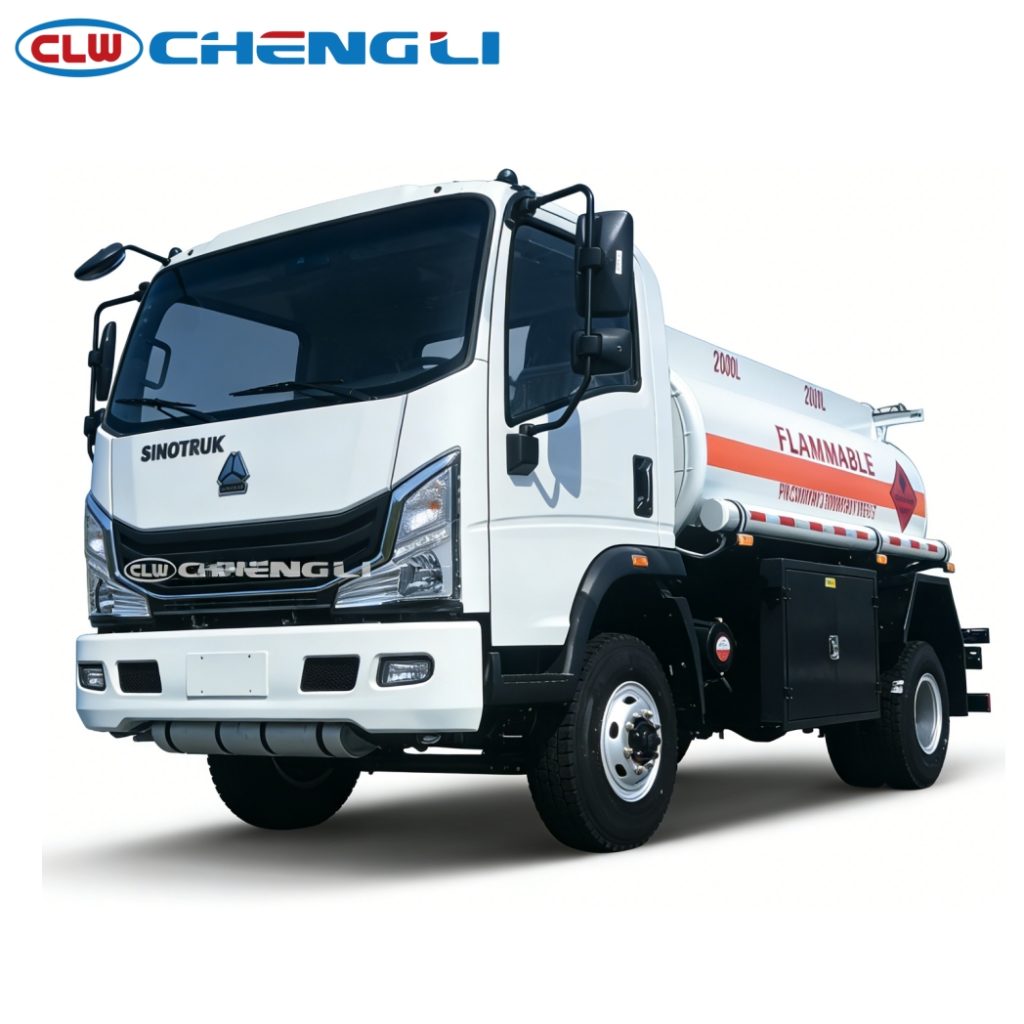

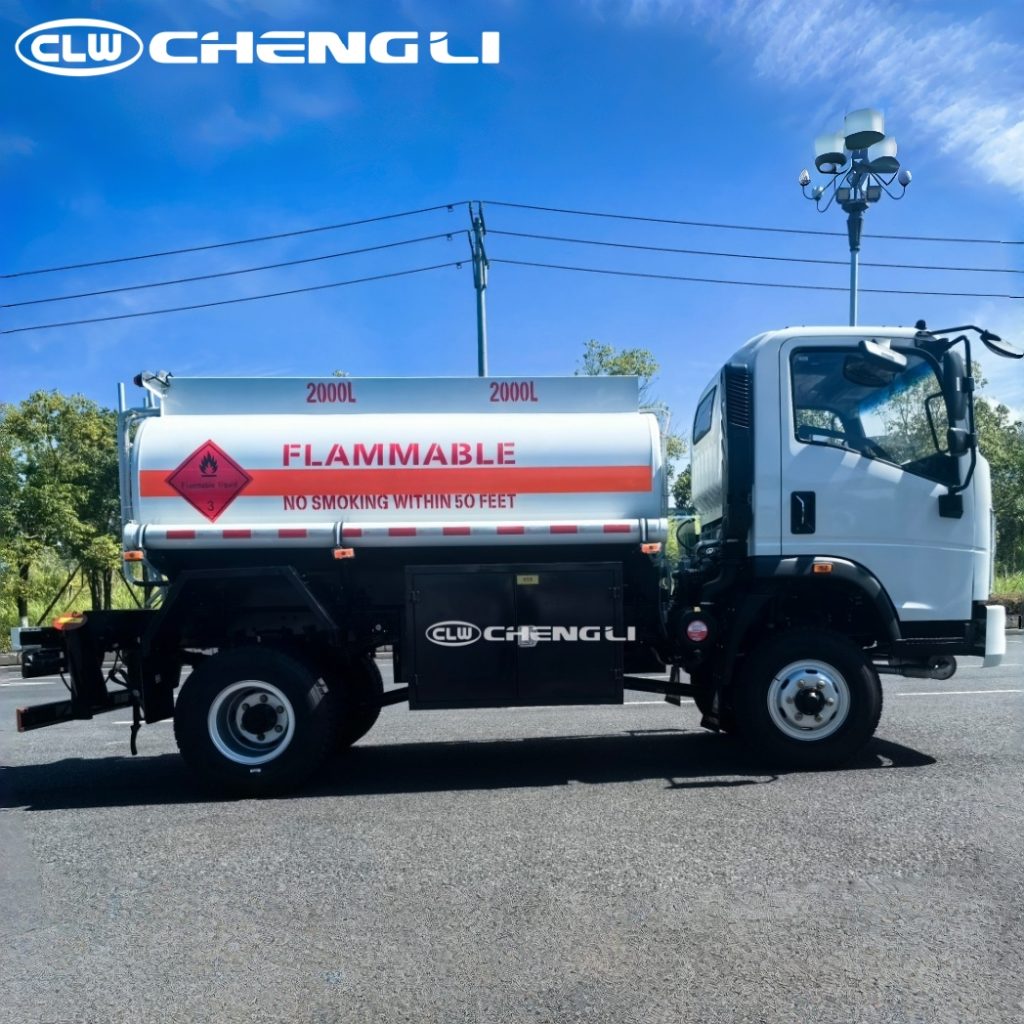

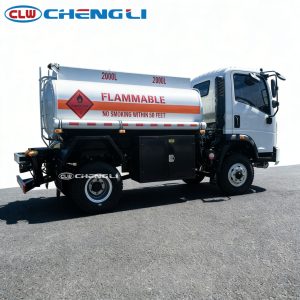

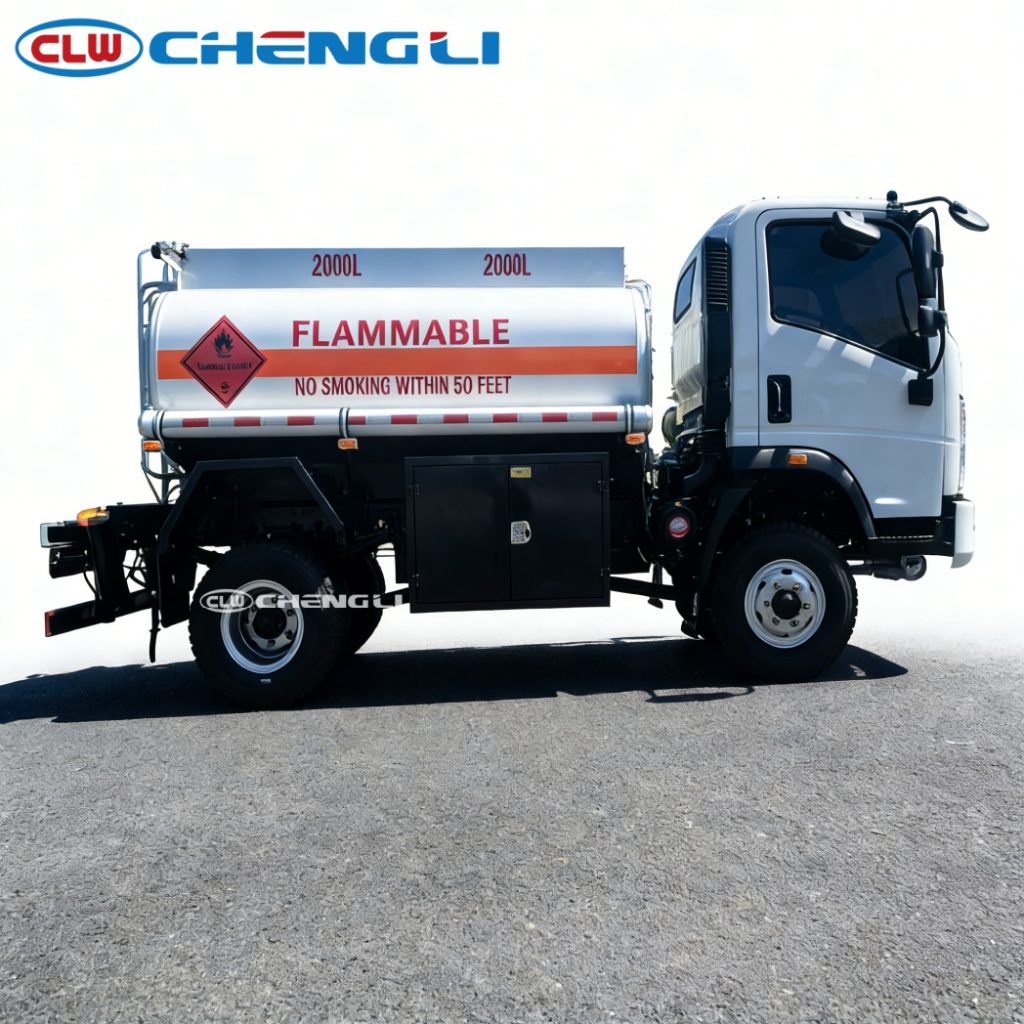

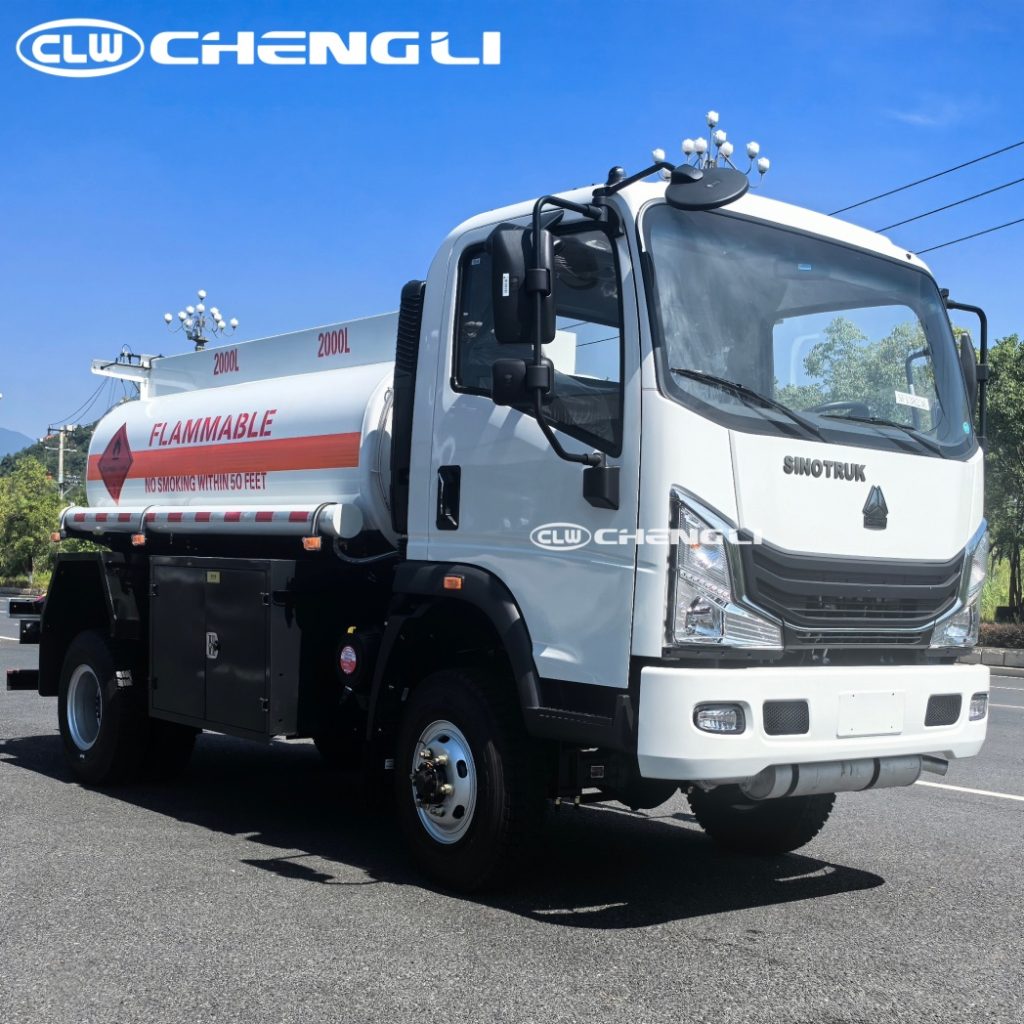

This Sinotruk Howo fuel tank truck is built on the ZZ1047D3414C145 chassis, featuring a classic Dreamcatcher 1880mm single-row cab with a 3360mm wheelbase for stable maneuverability. Powered by the YN4102QBZL engine delivering 116 horsepower, paired with a WLY6TS55C 6-speed manual transmission and reinforced power steering, it ensures reliable performance for urban and rural refueling tasks. Equipped with 7.00R16 14PR vacuum tires, a 4.2t drum rear axle (4.875 speed ratio), and a 120L iron fuel tank, the truck balances load-bearing capacity and fuel efficiency. Additional standard features include clutch booster, spring brake, air dryer, and frame VIN marking, meeting new national standards for safe and compliant operations.
Durable Tanker Body Design

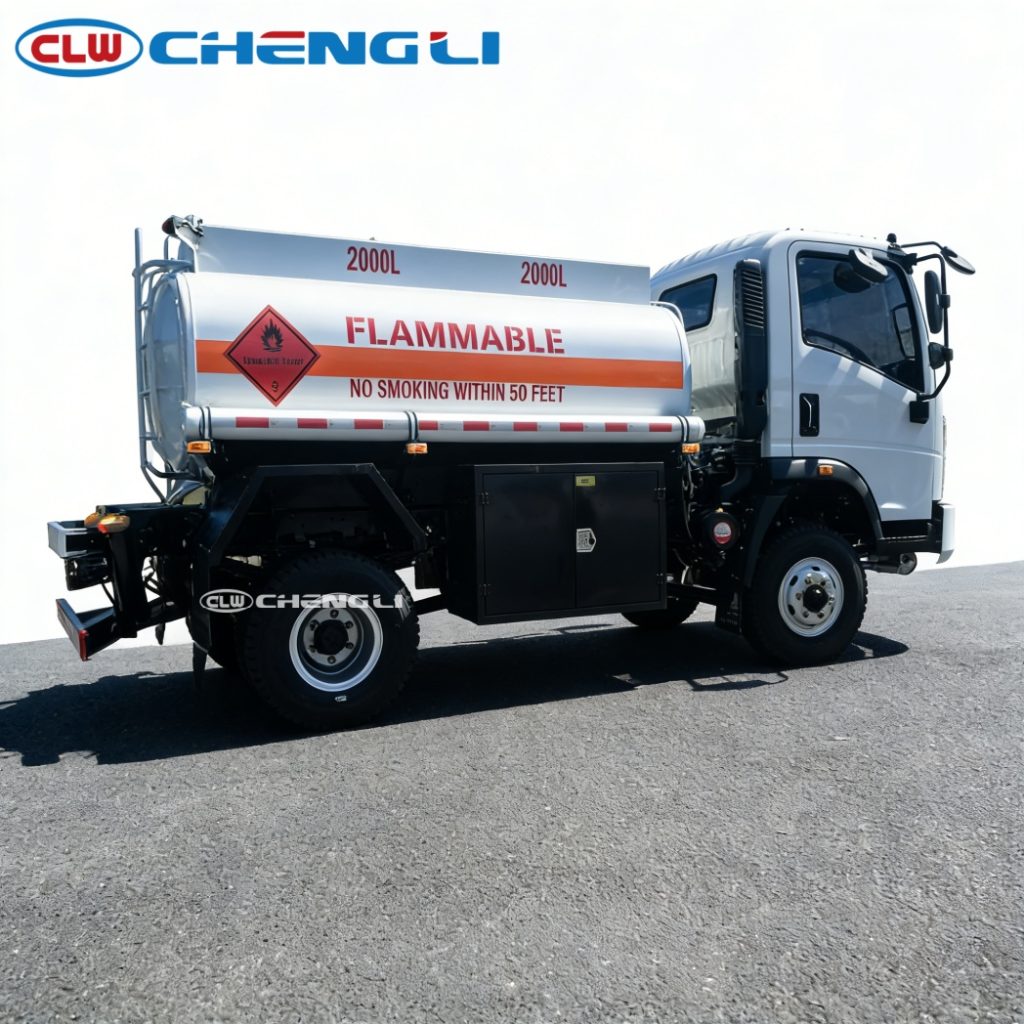

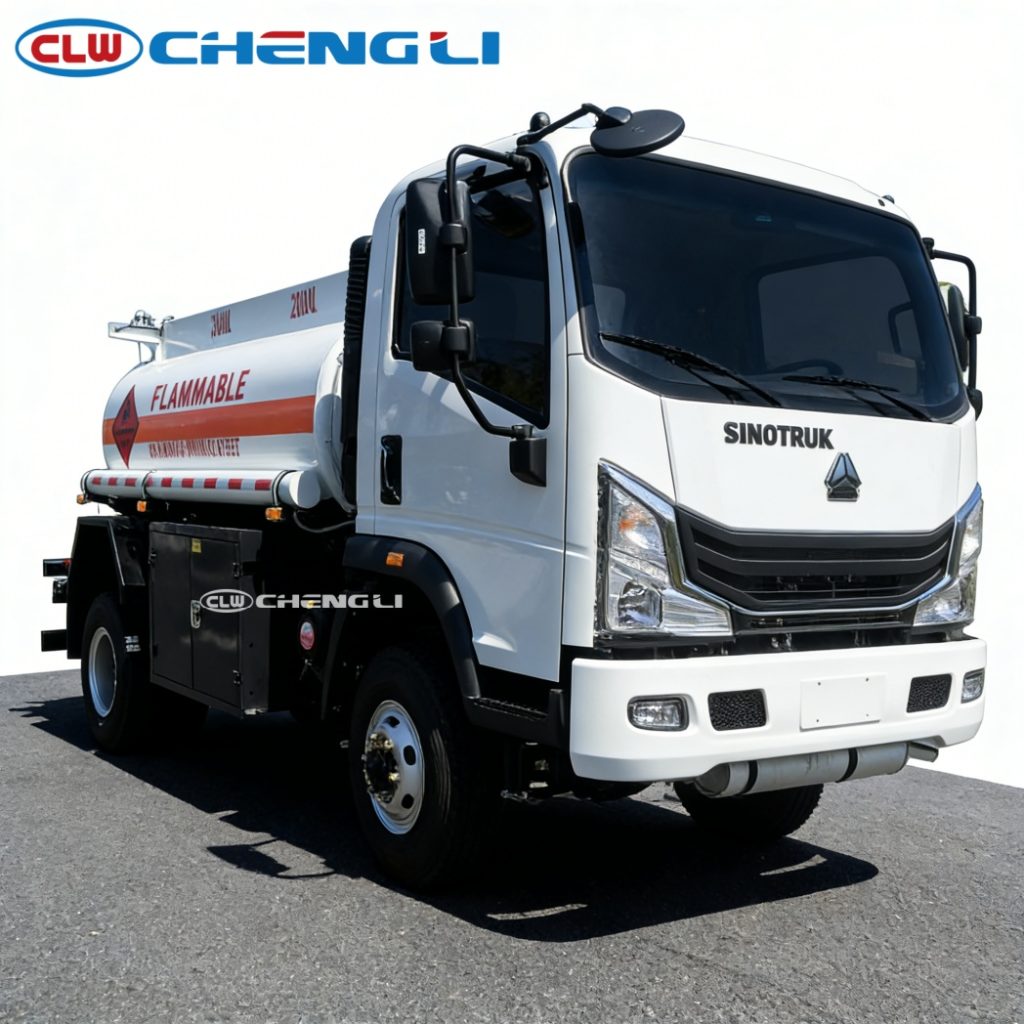

Featuring an upper tanker body constructed with high-quality Q235 carbon steel plates (4.2mm thickness), this 2000L+2000L Fuel Tank Truck ensures exceptional durability and corrosion resistance for long-term fuel transportation. It comes with a pump-in and pump-out system on the right side, integrated with an overflow valve to prevent overfilling risks. Configured with one European-standard tank port and one subsea valve (both on the right), plus two oil delivery hoses and two fire extinguishers, the truck complies with strict safety regulations for flammable liquid handling. A reserved refueling machine position on the left allows flexible customization, while the tank structure is optimized for even weight distribution, enhancing driving stability and reducing rollover risks during transit.
Flexible Customization Options
This refueling truck offers versatile customization to meet diverse customer needs, with optional flow meters, refueling machines, and hose reels available for seamless integration. The absence of factory-installed air conditioning and ABS can be adjusted based on operational environments—air conditioning can be added for hot-climate regions, while ABS can be equipped for enhanced braking safety on slippery roads. The cab’s full-wrap interior and fabric seats provide a comfortable driving experience, and the non-deflector design ensures easy passage through low-clearance areas such as urban tunnels and warehouse entrances. With no mandatory optional equipment, clients can tailor the truck to exact operational requirements, maximizing cost-effectiveness and practicality.
SPECIFICATIONS
BASIC INFORMATION | |
Product Model | Multiple Compartments Fuel Tank Truck |
Overall Dimension | 5995x2100x2500 mm |
Curb Weight | 4495Kg |
GVW | 2950 Kg |
Front/Rear Overhang | 1160/1475 mm |
Cab Seating Capacity | 2-3 Persons |
CHASSIS | |
Chassis Model | HOWO ZZ1047D3414C145 |
Pay Load | 1700 Kg |
Axle Configuration | 4×2 |
Wheel Base | 3360 mm |
Tire | 7.00R16 14PR |
Engine Brand | Yunnei/Cummins |
Max. Speed | 80 km/h |
UPPER STRUCTURE | |
Media Type | Fuel Such as Diesel/Gasoline/Engine Oil |
Color | Customized |
Tank Material | Q235 Carbon Steel |
Tank Thickness | 4-6 mm (customizable) |
ABS | YES |
Equipments | Arc Gear Oil Pump (capable of pumping in and out), Single compartment (multiple compartments customizable), Complete bottom loading system (including 1 bottom loading/unloading valve, 1 vapor recovery valve, 1 vapor recovery adapter, 1 set of pneumatic combination switches, 1 overfill prevention probe, and 1 socket), One European standard tank manhole cover, One bottom loading valve / emergency valve, One toolbox, Two hoses, Two fire extinguishers. |
The above mentioned figures are approximate.
