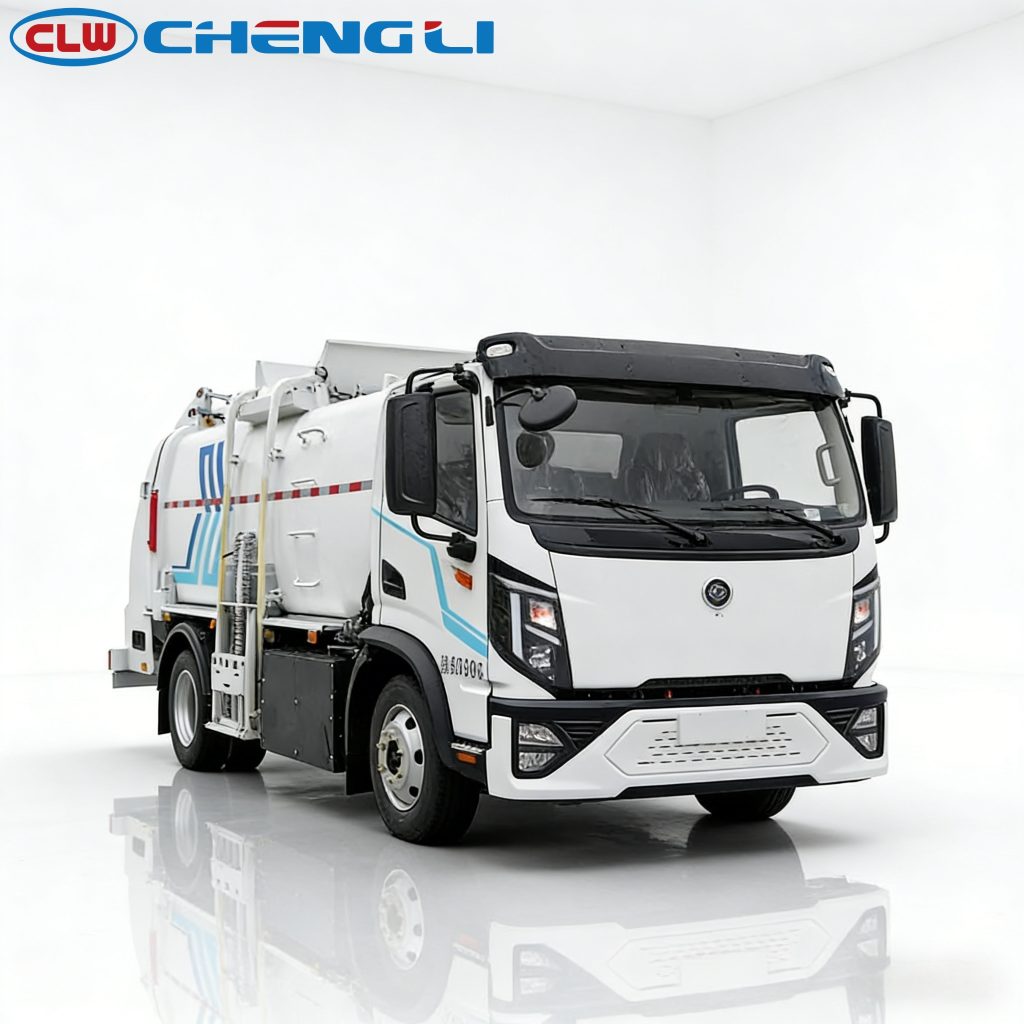

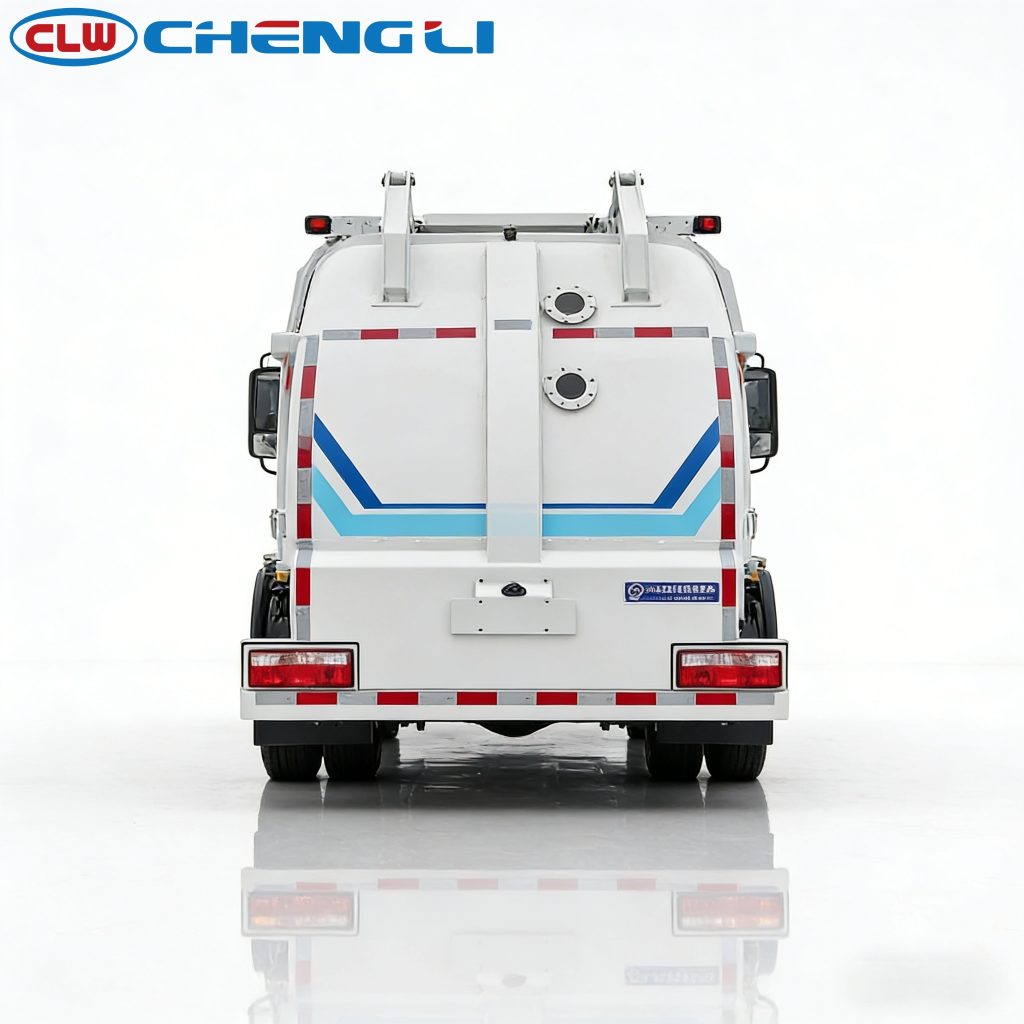

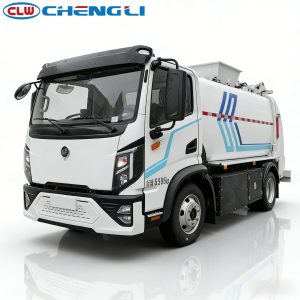

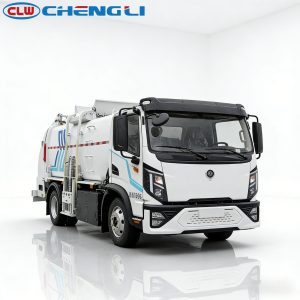

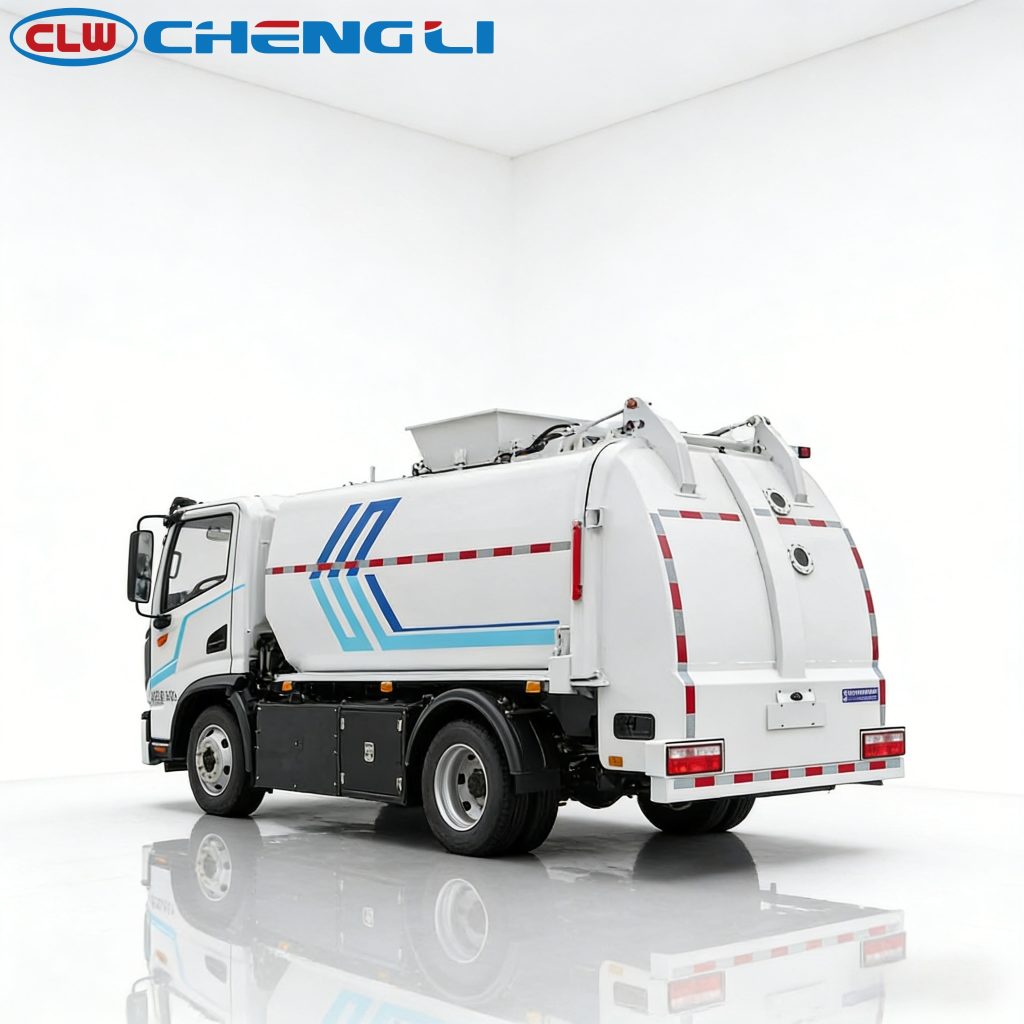

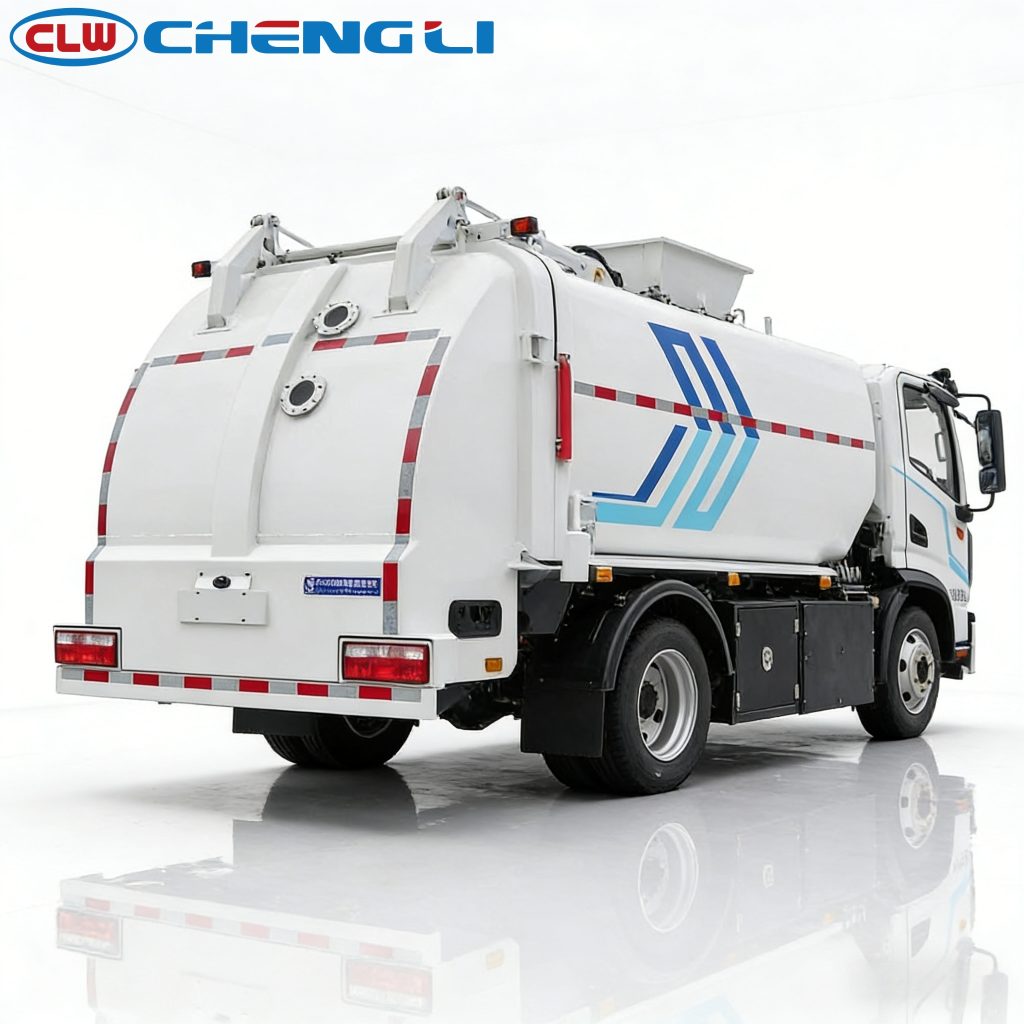

10-Ton Fully Electric Kitchen Food Waste Garbage Truck | High-Capacity Stainless Steel

Next-generation 10-ton fully electric kitchen waste truck, designed in collaboration with a leading electric chassis manufacturer for seamless integration and optimal performance. This vehicle is purpose-built for efficient, hygienic, and environmentally friendly collection and transportation of food waste from restaurants, hotels, cafeterias, and residential areas. Combining a robust electric powertrain with a durable, high-capacity stainless steel body, this truck delivers exceptional reliability and low operating costs. It features fast-charging capability, a spacious 8.6 m³ tank, and user-friendly automation to streamline waste collection operations while eliminating “run-off, drip, and leak” issues. Built to withstand demanding conditions, it has been rigorously tested in extreme high-temperature environments to ensure dependable performance.

FEATURES

Purpose-Built Integrated Design

This Food Waste Garbage Truck is developed on a dedicated electric chassis, co-engineered with the upper body for perfect harmony. This “joint design” approach optimizes space utilization, pre-arranges mounting points, and preserves the chassis integrity without the need for post-production modifications. The result is a more reliable, durable, and efficient waste collection vehicle.

Advanced Electric Powertrain & Fast Charging

10-Ton Food Waste Garbage Truck equipped with a high-safety Lithium Iron Phosphate (LFP) battery system (128.86 kWh) and a powerful permanent magnet synchronous motor (200 kW peak power), this truck delivers strong performance with zero emissions. The system is tuned for the start-stop nature of waste collection, ensuring energy efficiency. Ultra-fast charging capability charges the battery from 30% to 80% in just 35 minutes, maximizing vehicle uptime.

High-Capacity & Corrosion-Resistant Body

The 8.6 m³ garbage bin is constructed entirely from high-grade 304 stainless steel (4mm thick), offering superior resistance to the corrosive nature of food waste. The entire structure features a high-temperature electrostatic powder coating process, protecting critical components from corrosion for 6-8 years and significantly extending the vehicle’s service life.

Reliable & User-Friendly Operation

Designed for ease of use and leak-free performance, the system features a combined latch-lock cylinder and rear-door cylinder sealing mechanism. It supports both 120L and 240L standard bins with a rapid loading cycle (≤25 seconds). Operators can control the system manually or via the standard wireless remote control. An onboard washing system with a hose reel and hand spray gun simplifies cleaning. The 10-Ton Food Waste Garbage Truck has also undergone rigorous high-temperature testing under desert conditions (above 49°C) to validate its cooling system, fast-charging capability, and overall reliability in extreme environments.

SPECIFICATIONS

Mass Parameters	Maximum Total Mass (GVWR)	9,995 kg
	Curb Weight (Unladen)	6,100 kg / 6,300 kg
	Rated Payload Capacity	3,700 kg / 3,500 kg
Dimensions	Overall Dimensions (L×W×H)	6420 × 2270 × 2845 mm
	Wheelbase	3360 mm
	Front / Rear Overhang	1275 / 1785 mm
	Front / Rear Track Width	1780 / 1642 mm
