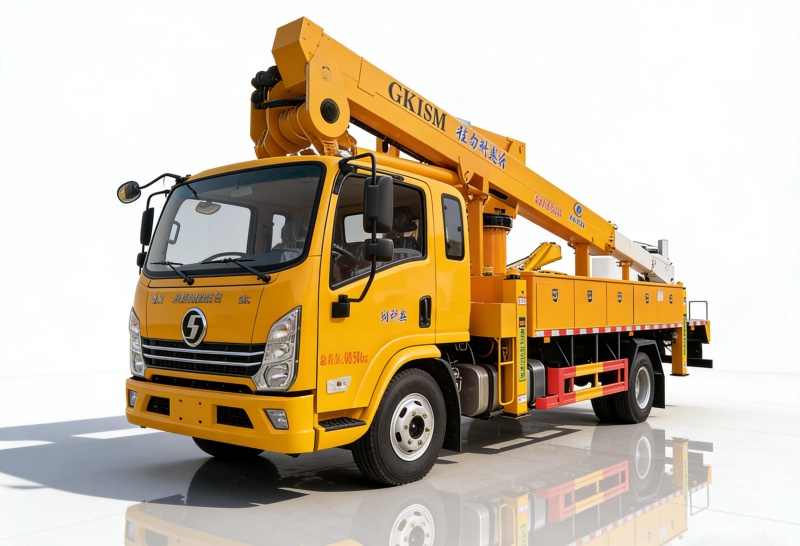

18M-21M Chengli Insulated Aerial Lifts are high-performance, versatile handling machines designed to provide exceptional lifting power and flexibility. Featuring robust build quality and innovative specifications, these insulated aerial work platforms are perfect for various applications, including installing and maintaining electrical systems and other general construction requirements.
Table of Contents
What is Insulated Aerial Work Platform (IAWP)?
An Insulated Aerial Work Platform (IAWP), also known as an Insulated Aerial Device/Insulated Aerial Lift, is a mobile elevating work platform designed to protect its occupant from electrical shock when working on or near energized power lines. An aerial device designed for work on or near energized lines and apparatus.
In simpler terms, it is a “cherry picker” or “bucket truck” built with non-conductive materials so that the person in the bucket is electrically isolated from the ground according to OSHA Aerial Lifts Safety standards.
Key Insulation Features & Safety Principles
Dielectric Construction: The core of the insulation comes from the boom (the arm) and the bucket (platform) made from non-conductive, dielectric materials like fiberglass-reinforced plastic (FRP) or other specialized composites. This prevents electricity from traveling from a live wire, through the machine, and into the ground.
Insulated Components: The protection extends beyond just the main structure. Critical parts like hydraulic lines and control handles are also electrically isolated using dielectric components (insulating manifolds or liners) to ensure there is no path for electricity to reach the operator.

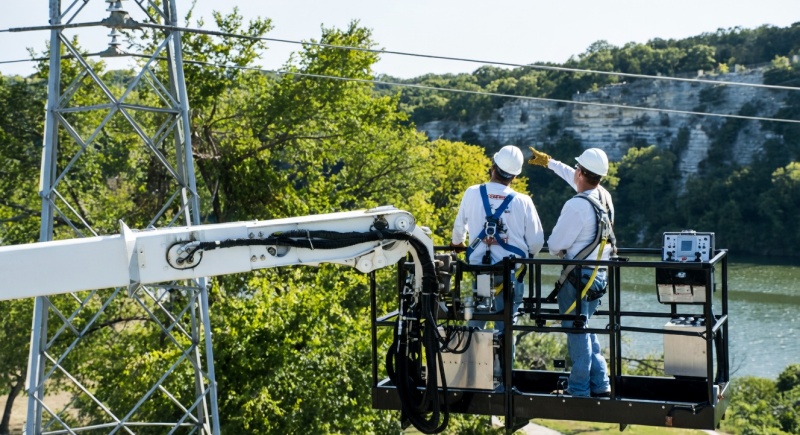

Purpose: Its sole purpose is to allow workers (like utility linemen) to safely perform tasks such as maintenance, repairs, and inspections on live electrical equipment without de-energizing the lines.
Important Safety Reminder
It is critical to understand that no aerial lift is 100% “shock-proof.” While the insulation provides a high level of protection, it must be maintained.
Do Not Modify: The insulated portion of an aerial lift must never be altered in any way that might reduce its insulating value (e.g., drilling holes in the bucket or adding conductive paint).
Regular Testing: These devices must undergo periodic electrical tests to verify their insulating integrity.
Why Choose Chengli 18M-21M Chengli Insulated Aerial Lift?

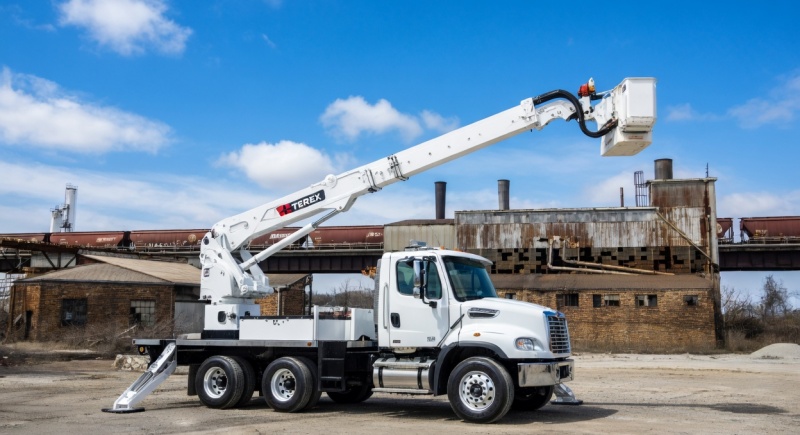

The Insulated Aerial Lift is launched by Chengli Group. Its performance reaches the international advanced level, with the main features as follows:
1. Insulation Performance
Features a 2.5m effective insulation pre-extension section, ensuring the operator can work immediately upon arrival at the job site, due to insufficient insulation section extension length, ensuring good safety.
The insulation arm section is made of imported fiber materials, offering high strength and stronger insulation performance.
2. Control System
- 3D multifunctional joystick – controls upper arm lifting/lowering, upper arm extension/retraction, turntable rotation, and other movements, easily achieving full-directional movement of the work platform.
- Work platform placed on the deck surface –allows ground-level entry and exit.
- Internal pipeline routing – better suited for complex line crossing operations.
3. Work Platform
- Rotatable ±180° – extended working range.
- Platform lift of 0.4m – increases working range and improves work efficiency.
- Platform with steps – convenient for operators to enter and exit the work area.
- Equipped with a rain cover – effectively protects the insulation performance of the work platform.
4. Insulated Telescopic Arm Floating Roller Support
- Idler roller guided support: ChengLi Insulated aerial lift truck features idler roller guided support.
- Reducing wear on the fiberglass insulation layer of the insulation arm helps protect the fiberglass surface, making the working arm more durable.
5. Telescopic Arm Hydraulic Hose Drag Chain Protection
Hydraulic hoses of the telescopic arm are protected and dragged by a high-strength closed engineering plastic drag chain – the hose bending radius is large, with the hoses only bearing internal oil pressure, providing good stress conditions, safe and reliable.
6. Practical Auxiliary Devices
Large-capacity toolbox –spacious, weather-sealed, and long enough for insulated poles, convenient for storing insulated tools such as insulated poles.
The toolbox above the deck and the enclosure form a closed area, convenient for storing more items.
Conclusion
Insulated ruck-mounted aerial platforms are more than just specialized vehicles—they’re mobile workstations that combine safety, speed, and elevation access. As cities expand and infrastructure ages, these trucks are becoming a must-have for service contractors, municipalities, and utility providers worldwide.
Interested in the Chengli 18M-21M Insulated Aerial Work Platform? Contact us today! Our team is ready to help with vehicle customization, fleet configuration advice, and engineering consultations.
